Aim Sqaure Techcom TTPL MB G31 Motherboard 1 Year Warranty

Brands TECHCOM
Product Code: B07NCCWC4W
Availability: In Stock



Price : Rs.2299

This is the best price

Best Price : Rs.2299

Features

  • INTEL G31 + ICH7 CHIPSET GROUP
  • LGA775 FOR INTEL PENTIUM 4 / PENTIUM D / CELERON D/ CORE DUAL CPU
  • INTEL GRAPHICS MEDIA ACCELERATOR 3100
  • 800 / 1066 / 1333MHZ FSB BUS FREQUENCY
  • DUAL CHANNEL DDR2 667/800 MHZ MEMORY

Product description

CPU:- SUPPORTS LGA775 CPU , SUPPORTS FSB 533/667/800MHZ CPU.

CHIPSET:- INTEL 82G31 + 82801GB , SUPPORTS GMA3100 GRAPHICS.

MEMORY:- 2*240-PIN DDRII SDRAM SLOT, MEMORY UPTO 4 GB, SUPPORTS DUAL CHANNEL DDRII 533/667/800MHZ MEMORY.

BIOS:- AMI BIOS

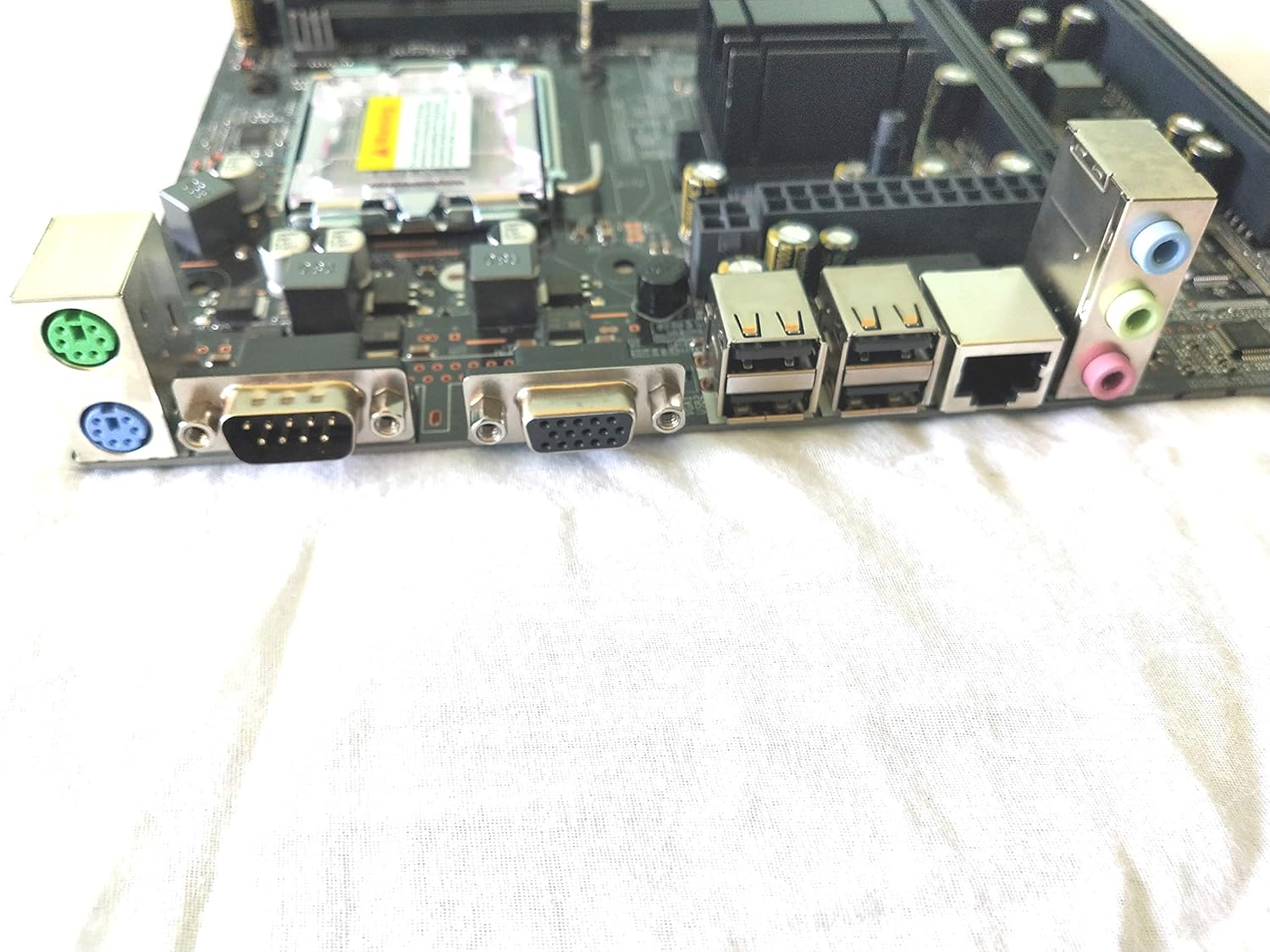

I/O INTERFACE:- 1 x PS/2 KEYBOARD PORT , 1 x PS/2 MOUSE PORT, 1 x COM PORT, 1 x VGA PORT, 4 x USB 2.0, COMPATIBLE WITH USB 1.1, 1 x RJ45 PORT, 1 x3-IN-1 AUDIO PORT(LINE IN/LINE OUT/MICE/IN)

ON BOARD INTERFACE:- 1 x 24 PIN ATX POWER CONNECTOR, 1 x 4 PIN ATX 12V POWER CONNECTOR, 2 x USB CONNECTORS CAN SUPPORT 4 * USB 2.0, 1 x F_AUDIO CONNECTOR, 1 x F_PANEL CONNECTOR, 1 x SPEAKER CONNECTOR, 2 x FAN CONNECTOR,4 * SERIAL ATA CONNECTION PORT, 1 x 40-PIN IDE PORT

INTEGRATED SOUND:- WITH 6 CHANNEL HD AUDIO CODE ON BOARD , PROVIDES FRONT AUDIO INTERFACE,PROVIDES FRONT STEREO MIC INTERFACE.

INTEGRATED LAN:- WITH 10 / 100 MBPS LAN ON BOARD.

EXPANSION SLOT:- 1 x PCI EXPRESS x 16 SLOT, 1 x PCI SLOT, CONFORMED TO PCI v2.3 SPECIFICATION.

DIMENSION:- MICRO-ATX ARCHITECTURE (17*21CM)



Technical Details

Brand TECHCOM
Model TTPL MB G31
Item Weight 458 g
Package Dimensions 12 x 10 x 3 cm
Item model number TTPL MB G31
Processor Socket Socket 775
Additional Features INTEL G31 + ICH7 CHIPSET GROUP, LGA775 FOR INTEL PENTIUM 4 / PENTIUM D / CELERON D/ CORE DUAL CPU, INTEL GRAPHICS MEDIA ACCELERATOR 3100, 800 / 1066 / 1333MHZ FSB BUS FREQUENCY, DUAL CHANNEL DDR2 667/800 MHZ MEMORY
Batteries Included No
Batteries Required No
Has Auto Focus No
Programmable Buttons No
