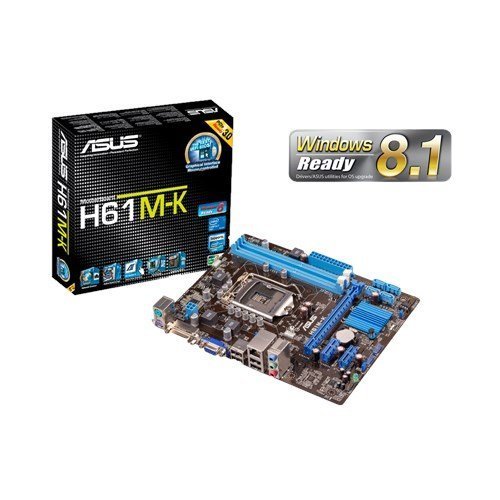

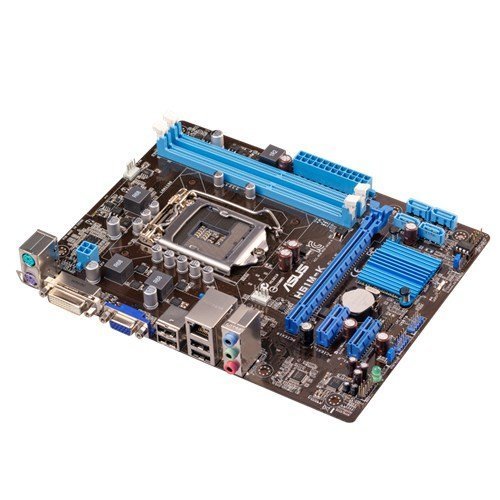

Asus H61M-K Motherboard

Features

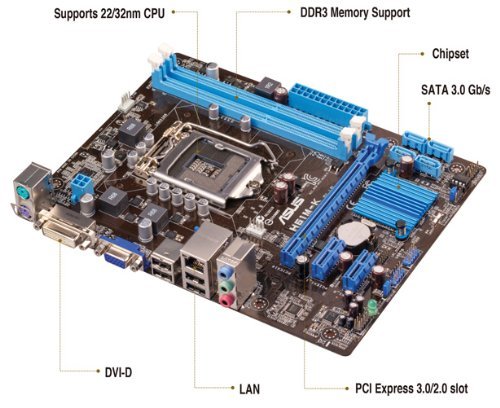

• 1) This motherboard supports the Intel® 3rd/2nd generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1155 package, with iGPU, memory, and PCI Express controllers integrated to support onboard graphics out with dedicated chipsets.
• 2)ASUS UEFI BIOS natively supports hard drives larger than 2.2TB in 64-bit, with full storage space utilization helping deliver far more exciting computing than traditional BIOS versions.
• 3) DDR-3, memory Support. 1 x Chassis Fan connector(s) (4 -pin) 1 x 4-pin ATX 12V Power connector(s) 1 x 24-pin EATX Power connector(s) 4 x SATA 3Gb/s connector(s) 1 x Front panel connector(s)
• 4) 1 x Clear CMOS jumper(s) 1 x Front panel audio connector(s) (AAFP) 1 x CPU Fan connector(s) (4 -pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x Internal speaker connector(s)
• 5) 8 x USB 2.0 port(s) 4 at back panel, black, 4 at mid-board.
