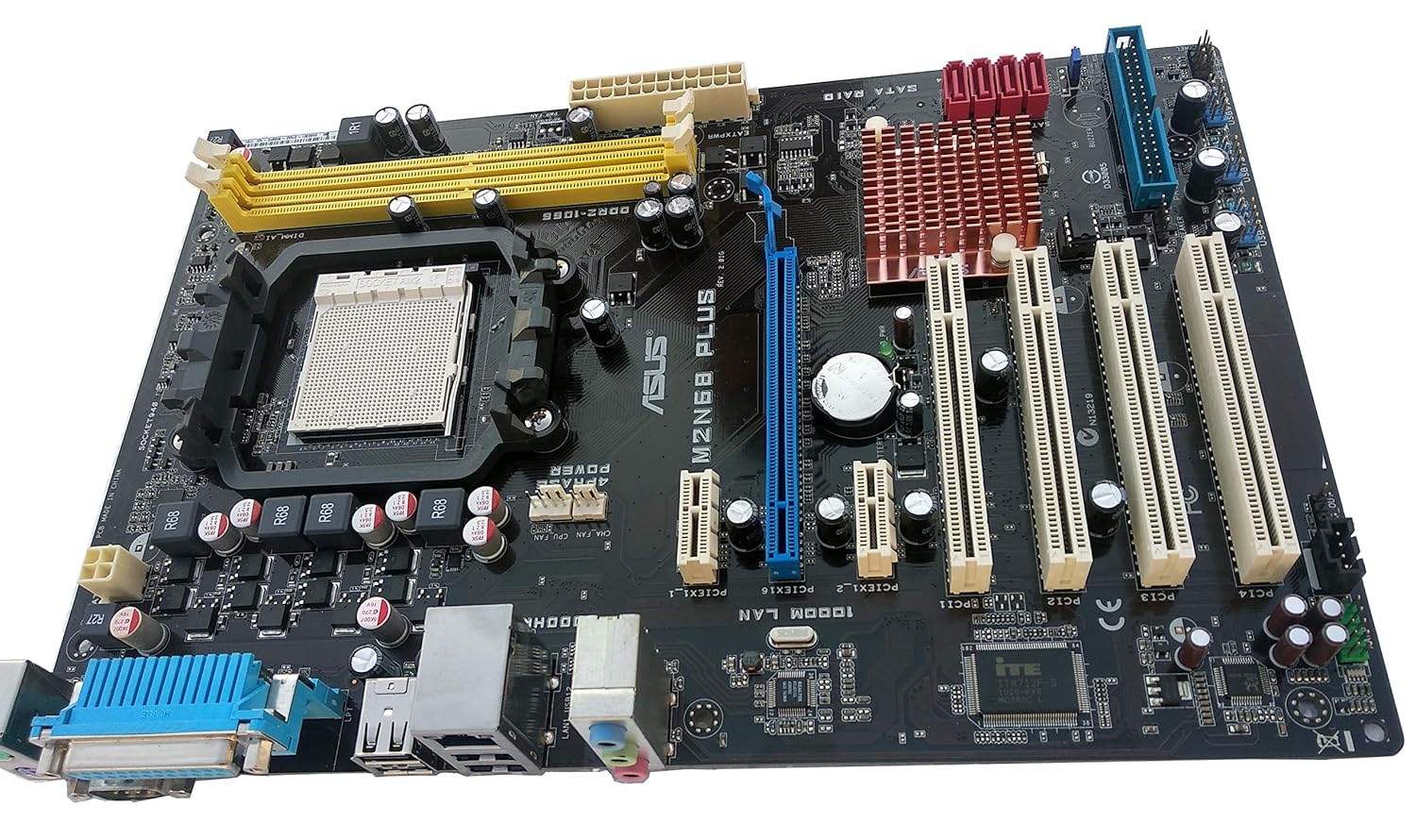

ASUS M2N68 Plus Socket AM2/AM2+/AM3 Full ATX Motherboard with Parallel & Serial Port onboard(4 PCI Slot, COMPULSORY Requires Full ATX Cabinet, No Onboard VGA Port, Requires Graphics Card)

Brands Asus
Product Code: B001UNI9IQ
Availability: In Stock



Price : Rs.3500

This is the best price

Best Price : Rs.3500

Features

  • COMPULSORY requires FULL ATX CABINET, No Onboard VGA Port So buy this MOTHERBOARD only if u have a GRAPHICS CARD
  • IMAGES mentioned in this product is not correct, so just google "ASUS M2N68 PLUS IMAGES" and get the correct image
  • CPU: AMD AM3/AM2+/AM2 ;PhenomII /AthlonII /Phenom / Athlon /Sempron Processors,AMD Cool 'n' Quiet Technology,* Due to the chipset limitation, the AM3/AM2+ CPU runs at HT1 (1000MHz), Chipset : NVIDIA nForce 630a,System Bus Up to 2000/1600 MT/s.
  • Memory :2 x DIMM, Max. 8 GB, DDR2 1066*/800/667 ECC,Non-ECC,Un-buffered Memory,Dual Channel memory architecture,Expansion Slots : 1 x PCIe x16,1 x PCIe x1,4 x PCI 2.2,Storage :Southbridge,1 xUltraDMA 133/100/66,4 xSATA 3 Gb/s ports,NVIDIA MediaShield RAID Support RAID 0,1,0+1,5,JBOD span cross Serial ATA drives., LAN :Gb LAN,Audio :Realtek ALC662 6-Channel High-Definition Audio CODEC,USB : 10 USB 2.0/1.1 ports (6 ports at mid-board, 4 ports at back panel)

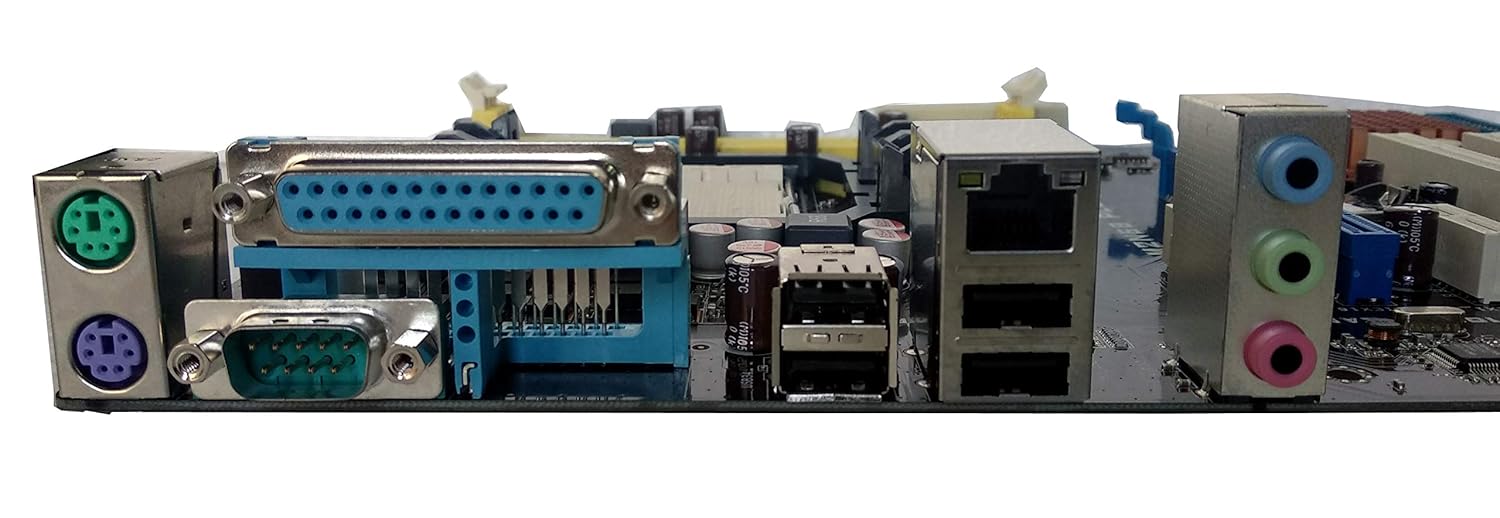

  • ASUS Unique Features,ASUS Q-Fan,ASUS CrashFree BIOS 3,ASUS EZ Flash 2,ASUS AI NET 2,ASUS MyLogo 2,Back Panel I/O Ports: 1 x PS/2 Keyboard,1 x PS/2 Mouse,1 x LAN(RJ45) port,4 x USB 2.0/1.1,1 x COM port,6 -Channel Audio I/O,1 x Parallel Port , internal I/O Connectors :3 x USB connectors support additional 6 USB 2.0/1.1 ports,1 x IDE connector,4 x SATA connectors,1 x CPU Fan connector,1 x Speaker connector,1 x CD audio in connector,1 x High Definition Front panel audio connector,1 x S/PDIF Out conn

Product description

This motherboard supports AMD AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption.This motherboard also supports AMD CPUs in the new 45nm manufacturing process.This motherboard supports AMD AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption.This motherboard also supports AMD CPUs in the new 45nm manufacturing process. Like AMD Phenom X4/ Phenom X3/ Athlon X2/ Athlon/ Sempron processors (socket AM2+/AM2),This motherboard supports AMD Socket AM2+ multi-core processors. It features dual-channel DDR2 1066 memory support, supports AMD Cool ´n´ Quiet Technology. This motherboard supports DDR2 1066, which provides faster data transfer rate and more bandwidth to increase memory data transfer rate and computing efficiency. This enhances system performance in 3D graphics and other memory demanding applications. AMD Cool 'n' Quiet Technology, This motherboard supports the AMD Cool 'n' Quiet technology which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet operating environment. This motherboard supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications. It also supports RAID 0, RAID 1, RAID 0+1, RAID 5, and JBOD configurations for Serial ATA drives. The onboard LAN controller is a highly integrated Gb LAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required. The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.



Technical Details

Brand Asus
Model 90-MIB8F0-G0EAY0GZ
Model Year 2009
Item Weight 1.02 Kg
Product Dimensions 34 x 28 x 6 cm
Item model number 90-MIB8F0-G0EAY0GZ
Computer Memory Type DDR2 SDRAM
Operating System Windows, Linux
Compatible Devices Desktop Pc
Additional Features This motherboard supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption.This motherboard also supports AMD® CPUs in the new 45nm manufacturing process., This motherboard supports DDR2 1066, which provides faster data transfer rate and more bandwidth to increase memory data transfer rate and computing efficiency. This enhances system performance in 3D graphics and other memory demanding applications., This motherboard supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications. It also supports RAID 0, RAID 1, RAID 0+1, RAID 5, and JBOD configurations for Serial ATA drives., With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required., ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation., Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen., This motherboard supports AMD® Socket AM2+ multi-core processors. It features dual-channel DDR2 1066 memory support, supports AMD® Cool ŽnŽ QuietTM Technology., This motherboard supports the AMD Cool 'n' Quiet technology which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet operating environment., The onboard LAN controller is a highly integrated Gb LAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems., The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip., ASUS AI NET2 remotely detects the cable connection immediately after you turn on the system and any faulty cable connections are reported back up to 100 meters at 1 meter accuracy.
Batteries Included No
Batteries Required No
Total Usb Ports 7
Form Factor ATX
Has Auto Focus No
Programmable Buttons No
