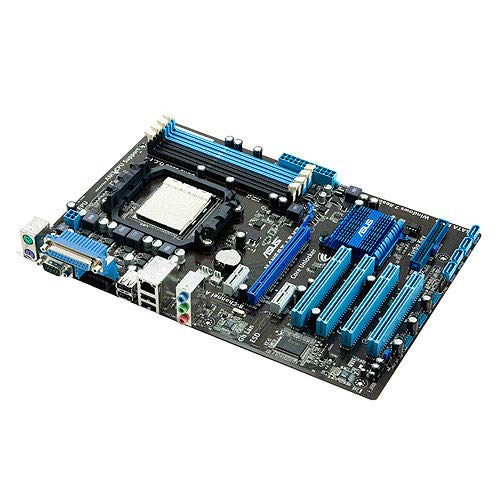

Asus M4N68T LE V2 Socket AM3 Full ATX Motherboard with Parallel and Serial Port Onboard

Features

• Supported CPUs :AMD Socket AM3 ;PhenomII /AthlonII /Sempron 100 Series Processors,AMD Cool 'n' Quiet Technology,AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
• Chipset :NVIDIA nForce 630a,System Bus : Up to 2000/1600 MT/s, Memory :4 x DIMM, Max. 16 GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066 ECC,Non-ECC,Un-buffered Memory,Dual Channel memory architecture,Expansion Slot : s1 x PCIe x16,2 x PCIe x1,4 x PCI
• Storage :Chipset:1 xUltraDMA 133/100,4 xSATA 3.0 Gb/s ports Support RAID 0,1,5,10,JBOD,LAN :Realtek 8211CL Gigabit LAN controller.,Audio :VT1708S High Definition Audio 8-Channel CODEC*,S/PDIF out on back I/O port,Support Multi-streaming,Single SPDIF Out, Anti-pop Function,*Choose the chassis with HD audio module in front panel to support 8-Channel audio output,USB : 10 USB 2.0/1.1 ports (6 ports at mid-board, 4 ports at back panel)

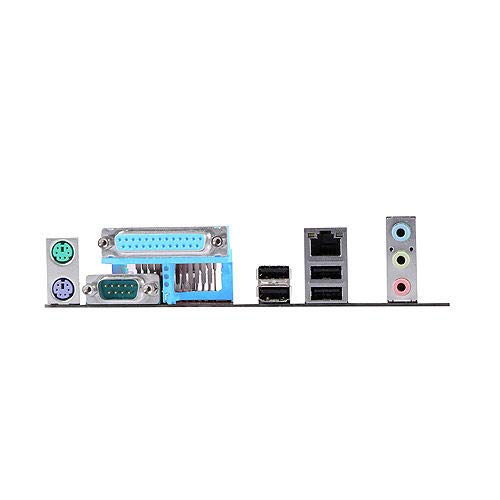

• Overclocking Features :Intelligent overclocking tools,- ASUS Turbo Key,SFS (Stepless Frequency Selection),- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment,- HT tuning from 200MHz up to 300MHz at 1MHz increment,Overclocking Protection,- ASUS C.P.R.(CPU Parameter Recall),Back Panel I/O Ports : 1 x Parallel port,3 x Audio I/O,1 x PS/2 Keyboard,1 x PS/2 Mouse,1 x LAN(RJ45) port,4 x USB 2.0/1.1, 1 x COM port.
• This Motherboard Comes In Plain White Box, Driver CD Will Provided By Seller.,Internal I/O Connectors : 3 x USB connectors (6 ports),1 x IDE connector,4 x SATA connectors,1 x CPU Fan connector,1 x Chassis Fan connector,1 x S/PDIF Out connector,Front panel audio connector,System Panel 1 x Internal speaker connector,1 x 24-pin ATX Power connector,1 x 4-pin ATX 12V Power connector ,BIOS :8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0,Form Factor : ATX Form Factor,
