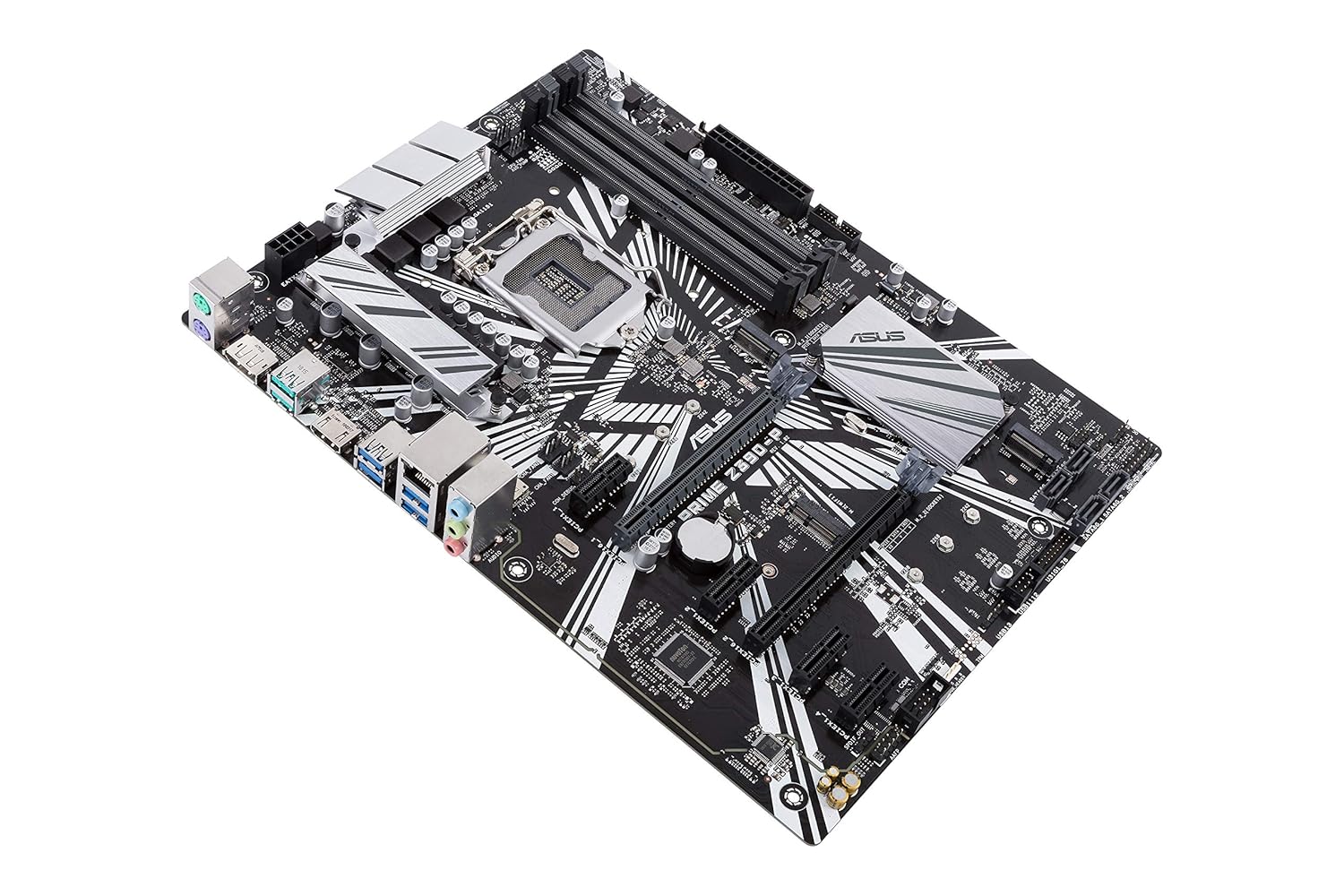

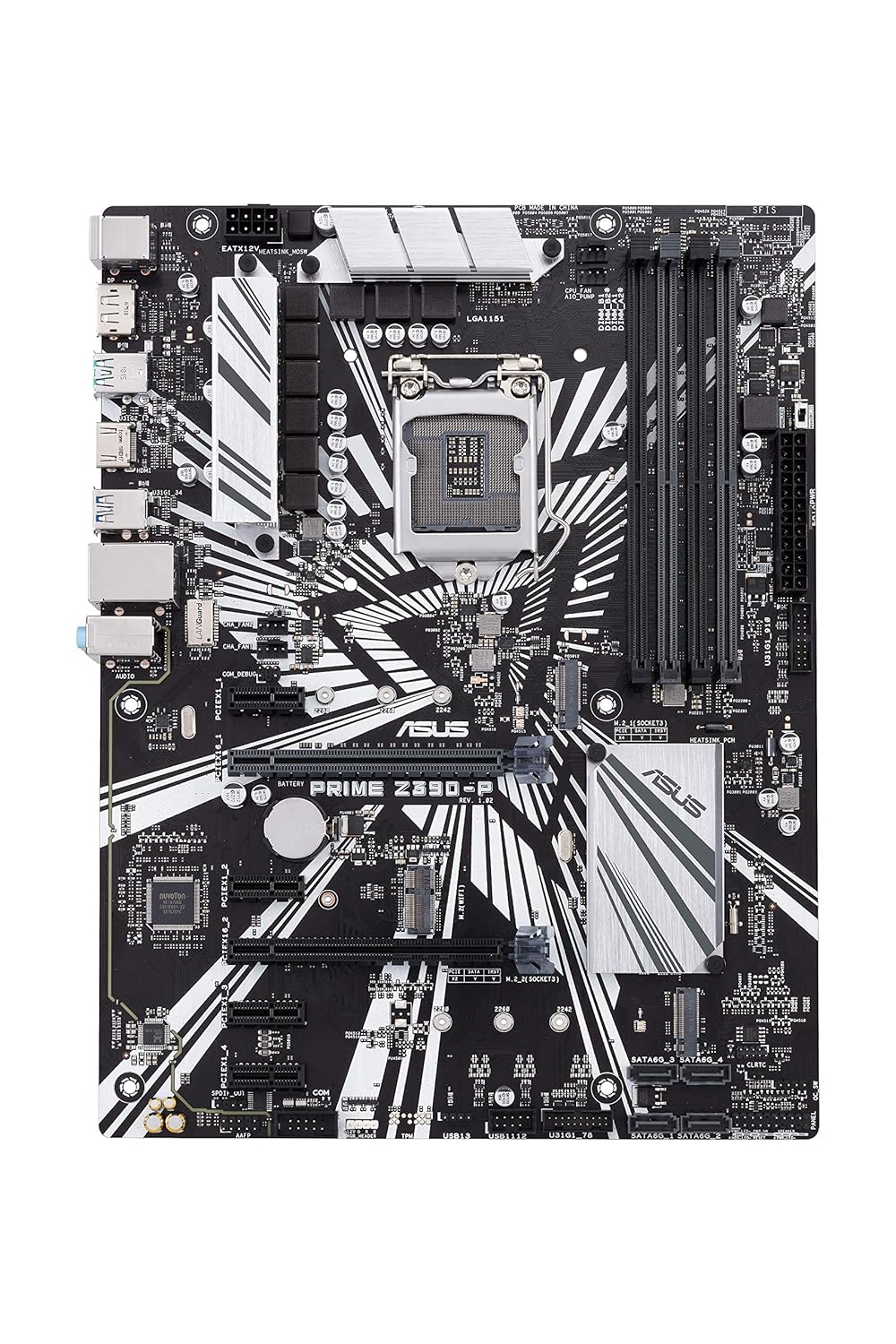

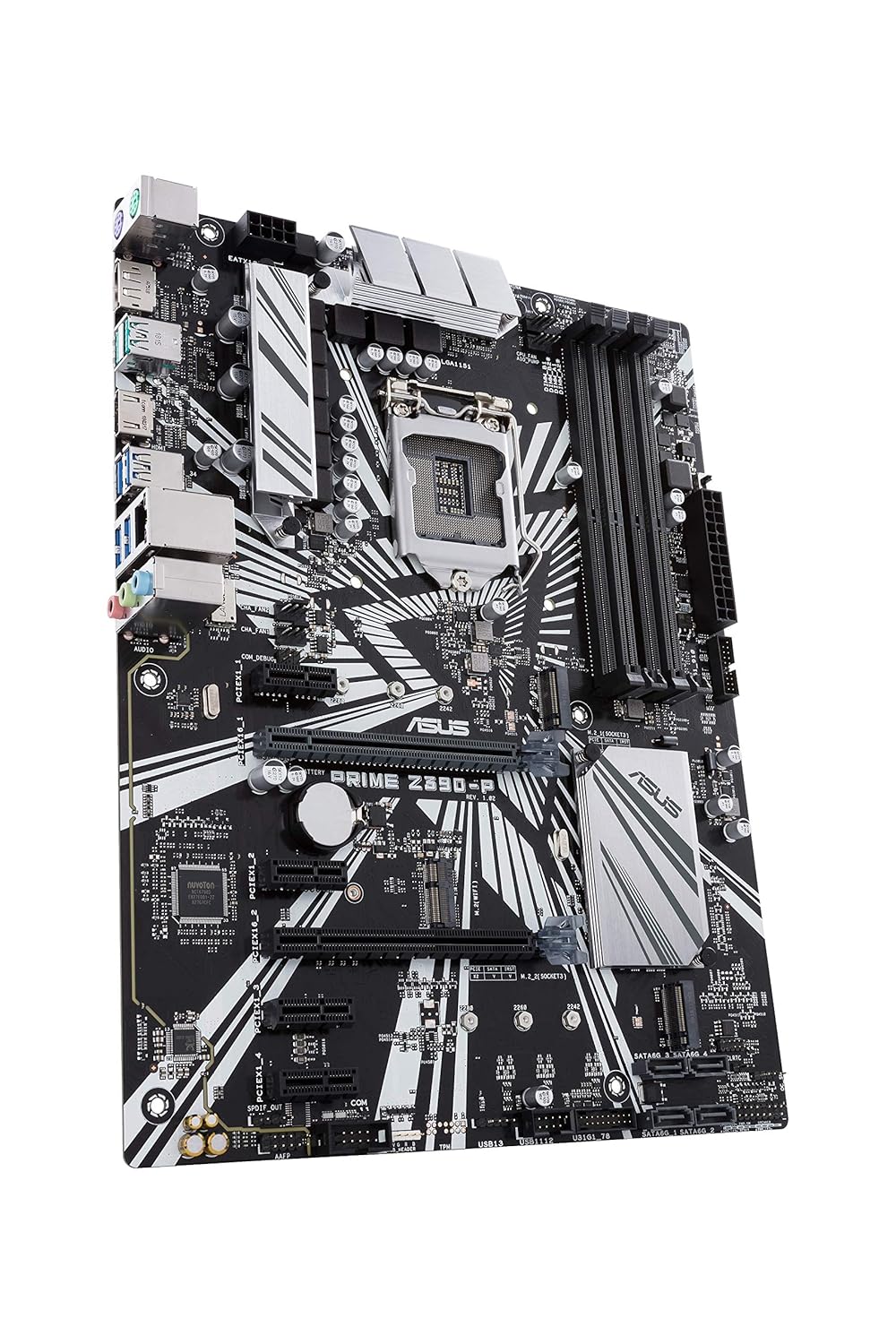

ASUS Prime Z390-P LGA1151 (Intel 8th 9th Gen) DDR4 DP HDMI M.2 Z390 ATX Motherboard USB 3.1 Gen2
| Brands | Asus |
| Product Code: | B07HCT5GBD |
| Availability: | In Stock |
Price : Rs.17400
This is the best price
Best Price : Rs.17400
Features
- Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with M.2, USB 3.1 Gen2 and ASUS Optimum II for better DRAM overclocking stability
- 5X Protection III Hardware-level safeguards with Safe Slot Core, LANGuard and Overvoltage Protection provide component longevity and reliability
- FanXpert 4 with AIO Pump Header delivers advanced fan control for dynamic system cooling
- Patent-pending Safe Slot Core fortified PCIe slots prevent damage caused by heavyweight GPUs
- 8-channel HD Gaming Audio featuring Realtek ALC887 high definition audio codec
Product description
|

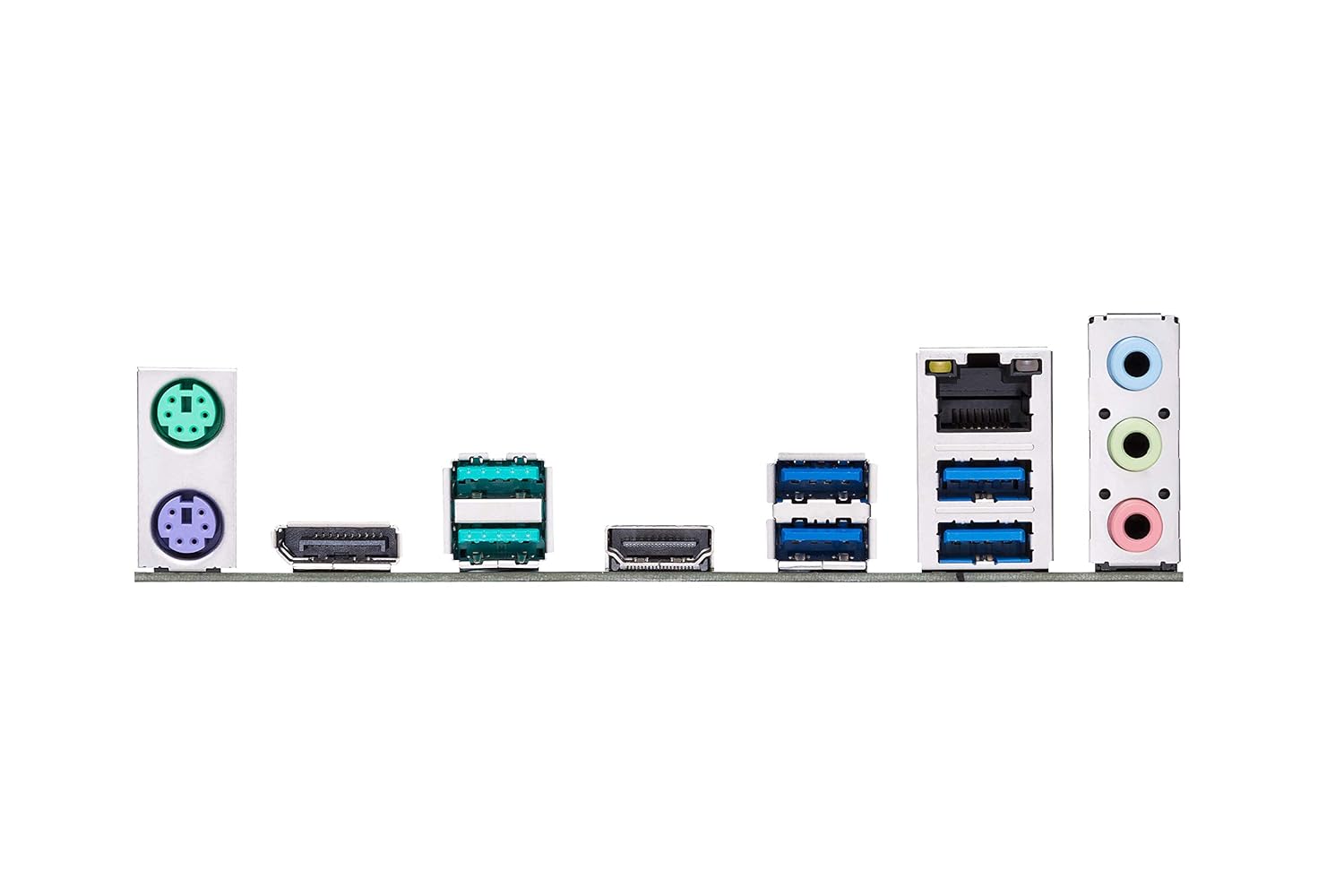

Specifications Mfr Part Number: PRIME Z390-P CPU: LGA1151 Supports Intel Core 9000 series, 8th Generation Core i7/ i5/ i3, Pentium and Celeron Processors Supports 14nm CPU Supports Turbo Boost Technology 2.0 Chipset: Intel Z390 Memory: 4x DDR4-4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB Slots: 1x PCI-Express 3.0/2.0 x16 Slot (supports x16, x8+x4+x4), 1x PCI-Express 3.0/2.0 x16 Slot (runs at x4), 4x PCI-Express 3.0/2.0 x1 Slots Multi-Graphics: Supports AMD CrossFireX Technology Storage: SATA: 4x SATA3 Ports (gray), Support RAID 0, 1, 5, 10 M.2: 2x M.2 Ports (w/ M key), one supports type 2242/ 2260/ 2280 storage devices & SATA & PCIE x4 mode, one supports type 2242/ 2260/ 2280 storage devices & SATA & PCIE x2 mode Audio: Realtek ALC887 8-channel High Definition Audio CODEC LAN: Realtek 8111H Gigabit Ethernet Controller Ports: 2x USB 3.1 Gen 2 Ports (Type A rear), 8x USB 3.1 Gen 1 Ports (4 Type A rear, 4 Type A at mid-board), 3x USB 2.0/1.1 Ports (at mid-board), 1x PS/2 keyboard Port, 1x PS/2 Mouse Port, 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24-pin EATX Power Connector, 1x 8-pin EATX 12V Power Connector Form Factor: ATX, 12.0 x 9.2 inch / 30.5 x 23.4 cm |
Technical Details
| Brand | Asus |
| Form Factor | atx |
| Item Height | 26.3 Centimeters |
| Item Width | 5.3 Centimeters |
| Item Weight | 1.12 Kg |
| Product Dimensions | 32.8 x 5.3 x 26.3 cm |
| Item model number | Prime Z390-P |
| Processor Socket | LGA 1151 |
| Memory Technology | DDR4 |
| Computer Memory Type | DDR4 SDRAM |
| Wireless Type | 802.11.ac |
| Number of HDMI Ports | 1 |
| Wattage | 140 |

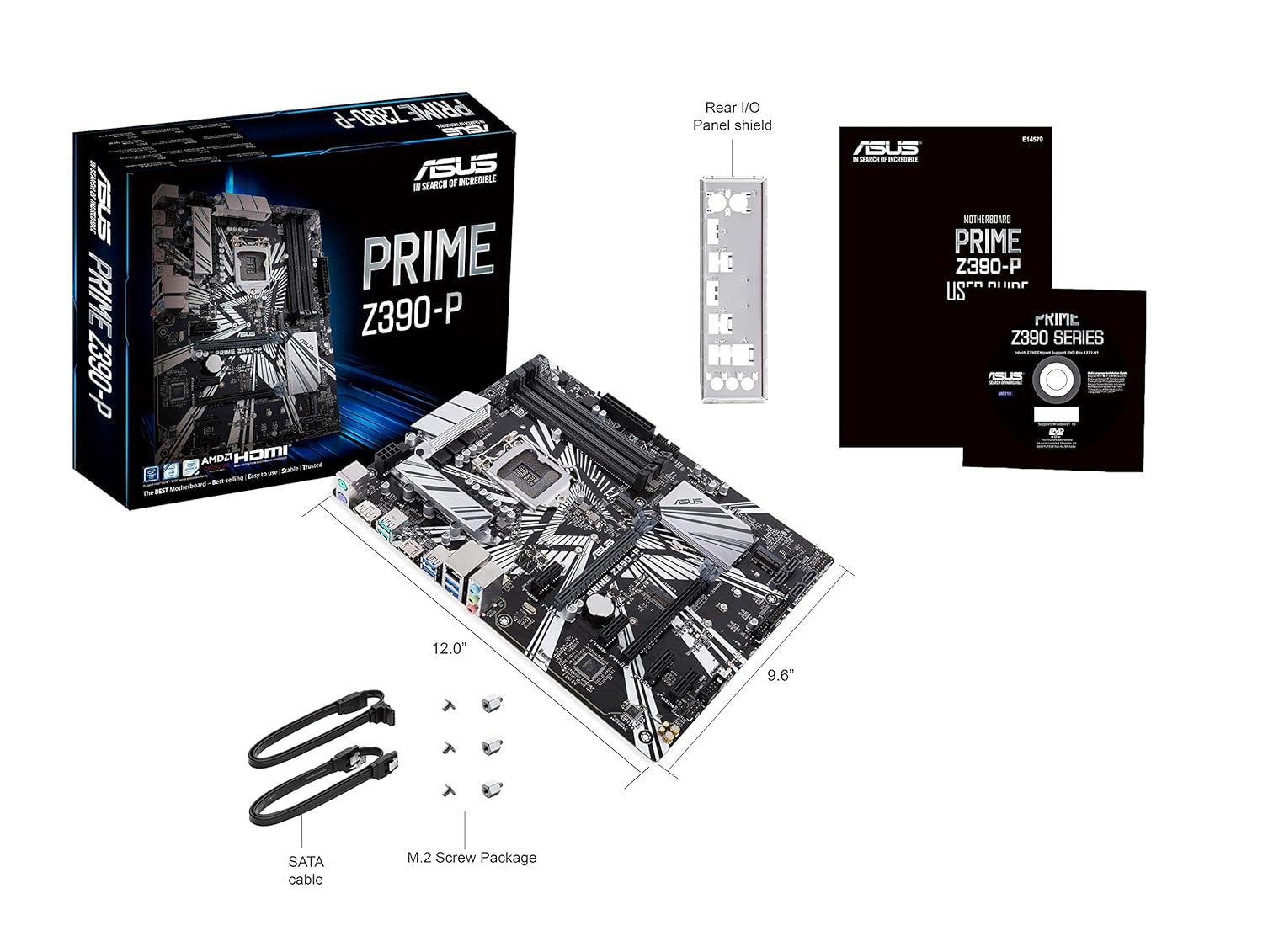

| Included Components | PRIME Z390-P, SATA 6Gb/s cables(2), IO Shield, M.2 Screw Package(2), Support DVD, User's Manual |
