ASUS ROG Maximus XI Extreme Z390 Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) EATX DDR4 HDMI M.2 USB 3.1 Gen2 Onboard 802.11ac WiFi
| Brands | Asus |
| Product Code: | B07JVGGXNL |
| Availability: | In Stock |
Price : Rs.49299
This is the best price
Best Price : Rs.49299
Features
- Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with four M.2, USB 3.1 Gen 2, onboard 802.11ac Wi-Fi and ASUS Optimism II for better DRAM overclocking stability
- Revamped 5-way Optimization overclocks Intelligently based on smart prediction and thermal telemetry while Fan pert 4 delivers dynamic system cooling

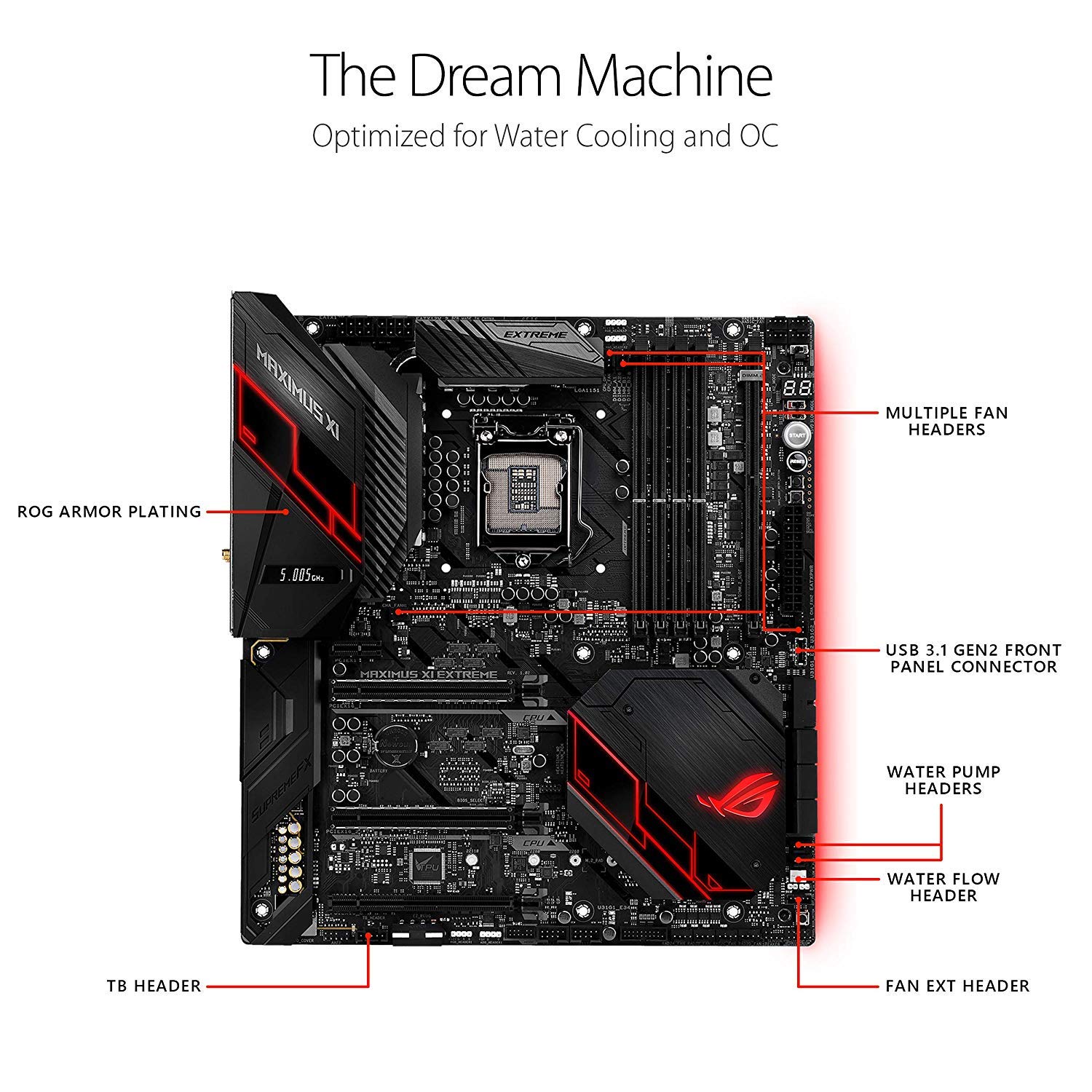

- Dedicated water cooling headers allow for comprehensive monitoring of water temperature and flow
- Equipped with four M.2 slots to take full advantage of Intel first and NV Me RAID, featuring ROG DIMM.2 expansion

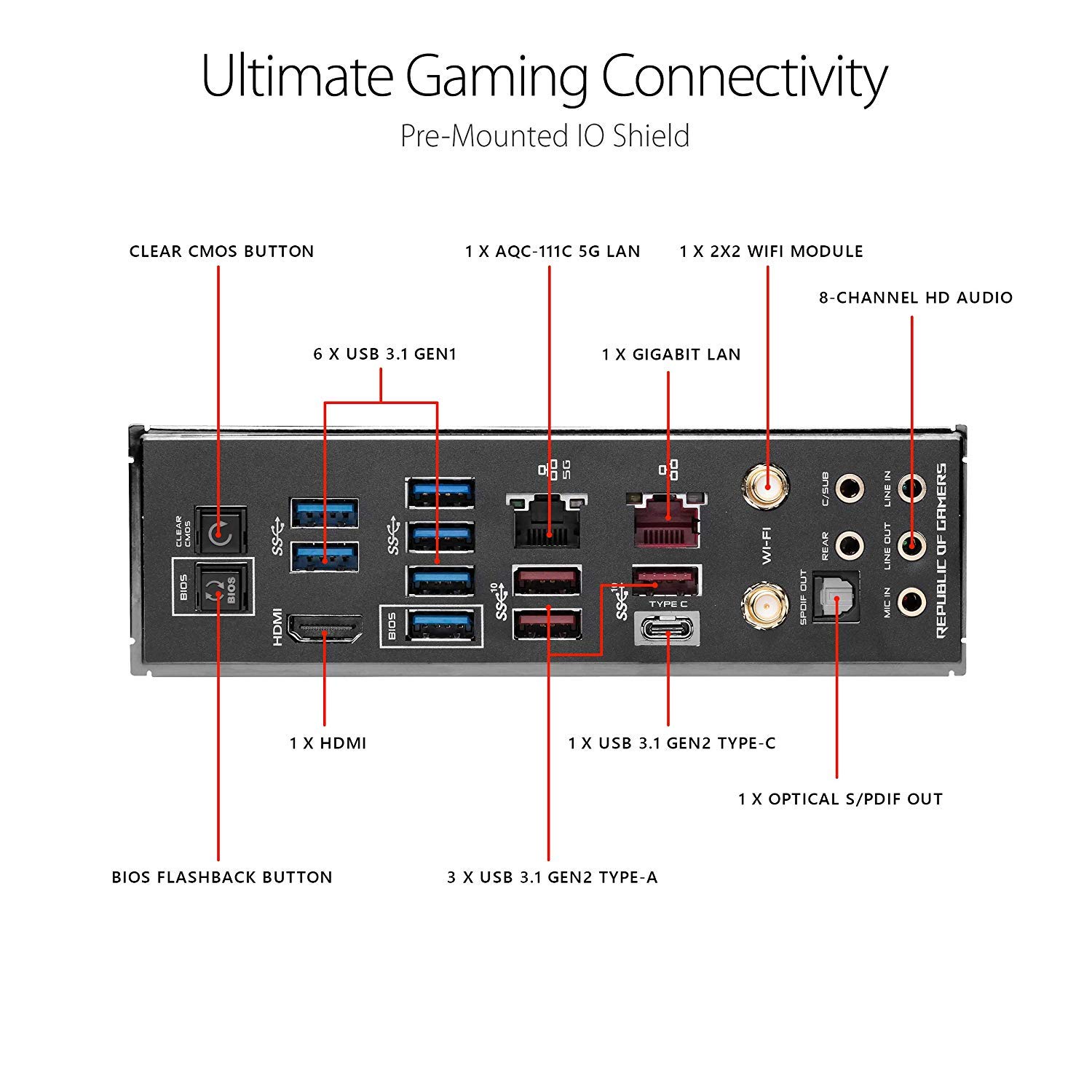

- Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality
Product description
|
Specifications Mfr Part Number: ROG MAXIMUS XI EXTREME CPU: LGA1151 Supports Intel Core 9000 series, 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors Supports Intel 14nm CPU Supports Intel Turbo Boost Technology 2.0 Chipset: Intel Z390 Memory: 4x DDR4-4400+(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB Slots: 2x PCI-Express 3.0 x16 Slots (supports x16, x8/x8, x8/x4+x4), 1x PCI-Express 3.0 x16 Slot (max at x4 mode), 1x PCI-Express 3.0 x1 Slot Multi-Graphics: Supports AMD Quad-GPU/ 3-Way CrossFireX and NVIDIA Quad-GPU/ 2-Way SLI Technology Storage: SATA: 6x SATA3 Ports, Supports RAID 0, 1, 5, 10 M.2: 2x M.2 Ports (w/ M Key), one supports type 2242/ 2260/ 2280/ 22110 & SATA & PCI-Express 3.0 x4 modes, one supports type 2242/ 2260/ 2280 & PCI-Express 3.0 x4 modes Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 LAN: Aquantia AQC-111C 5G LAN and Anti-surge LANGuard and Intel I219V Gigabit Ethernet Controllers; Intel Wireless-AC 9560 2x2 Wi-Fi with MU-MIMO 802.11 a/b/g/n/ac Wireless LAN (2.4/5 GHz), Bluetooth v5.0 Ports: 5x USB 3.1 Gen 2 Ports (3 Type-A rear, 1 Type-C rear, 1 front), 10x USB 3.1 Gen 1 Ports (6 rear, 4 at mid-board), 4x USB 2.0 Ports (at mid-board), 1x HDMI Port, 1x Optical S/PDIF Out, 1x AQC-111C 5G LAN Port, 1x Anti-surge LAN Port, 1x RJ45 LAN Port, 1x 2x2 Wi-Fi module, Audio I/O Jacks Power Connector: 1x 24-pin EATX Power Connector, 1x 8-pin EATX 12V Power Connector, 1x 4-pin EATX 12V Power Connector Form Factor: Extended ATX, 12.0 x 10.9 inch |
Technical Details
| Brand | Asus |
| Form Factor | extended_atx |
| Item Height | 27.7 Centimeters |
| Item Width | 25 Millimeters |
| Item Weight | 2.95 Kg |
| Product Dimensions | 30.5 x 2.5 x 27.7 cm |
| Item model number | ROG Maximus XI Extreme |
| Processor Socket | LGA 1151 |
| Memory Technology | DDR4 |
| Wireless Type | 802.11 a/b/g/n/ac |
| Number of HDMI Ports | 1 |
| Wattage | 140 |
| Included Components | ROG MAXIMUS XI EXTREME motherbaord, User guide, ROG motherboard support DVD, ASUS 2x2 dual band Wi-Fi antenna (Wi-Fi 802.11a/b/g/n/ac compliant), 2-in-1 SATA 6Gb/s cables(2), ROG weave SATA 6G cable, 2-Way SLITM HB bridge, Q-Connector, USB2.0 adapter, extension cable for RGB strips (80cm), M.2 screws package, ROG logo plate sticker, ROG coaster, ROG sticker, ROG Thank you card |
