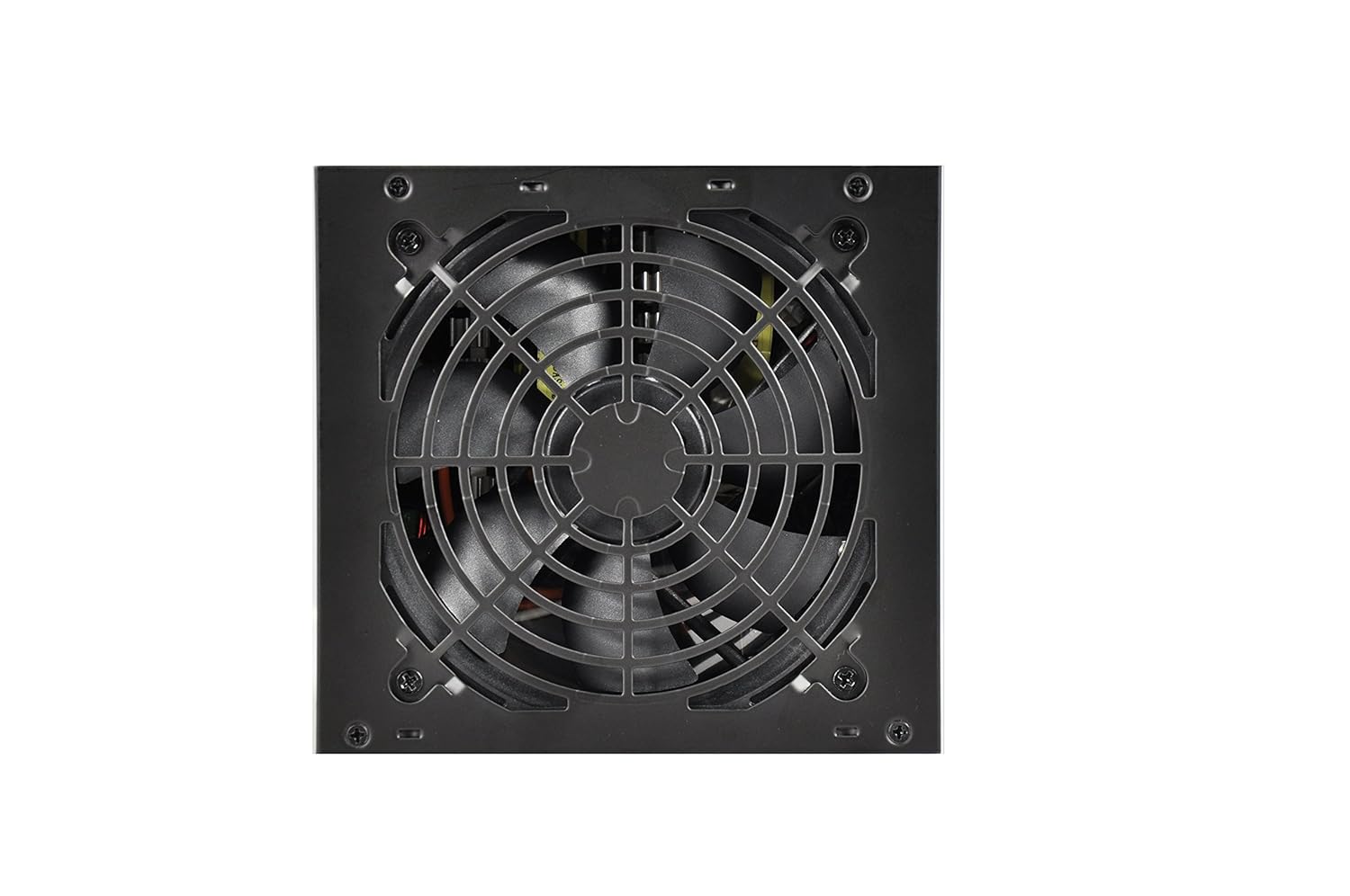

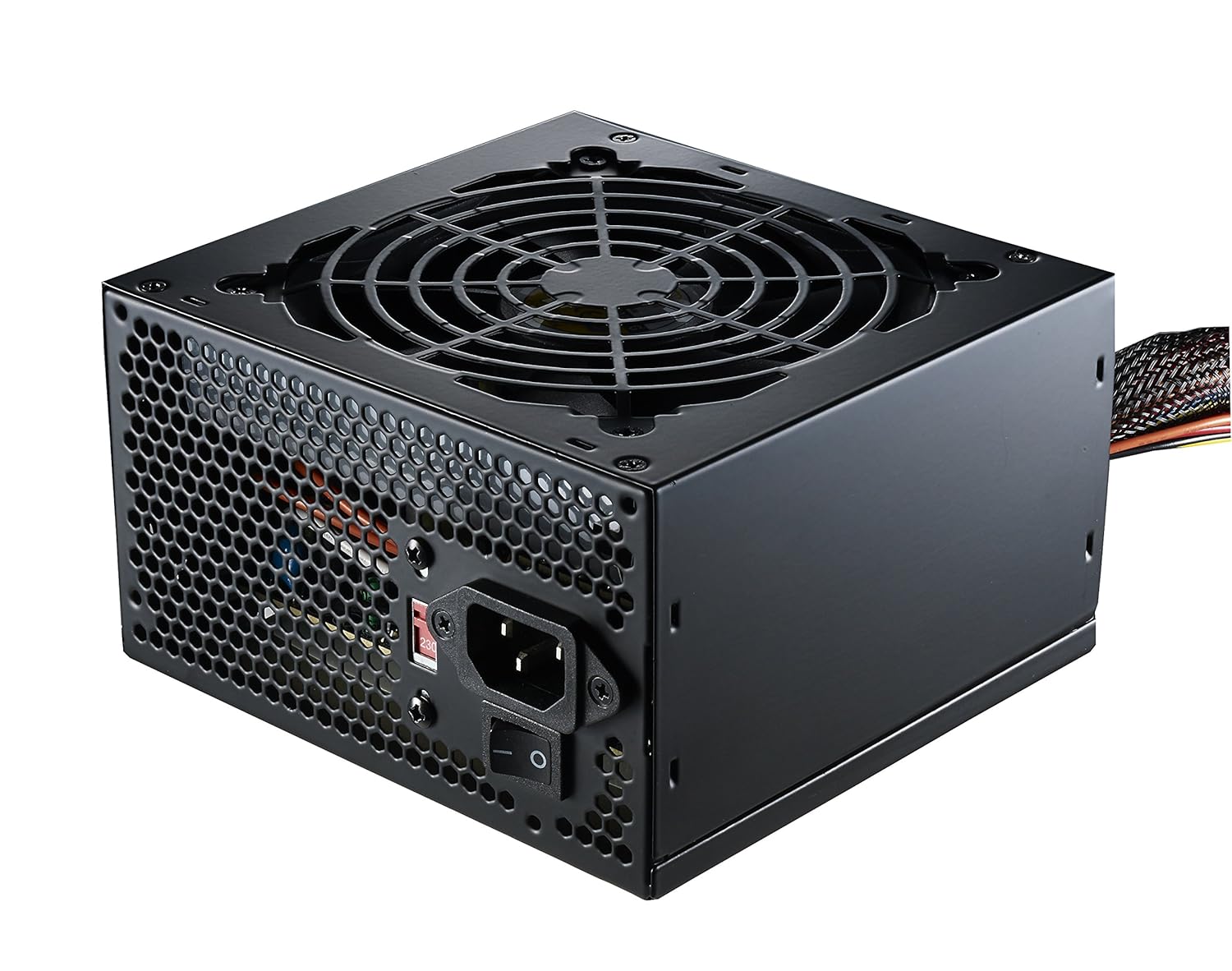

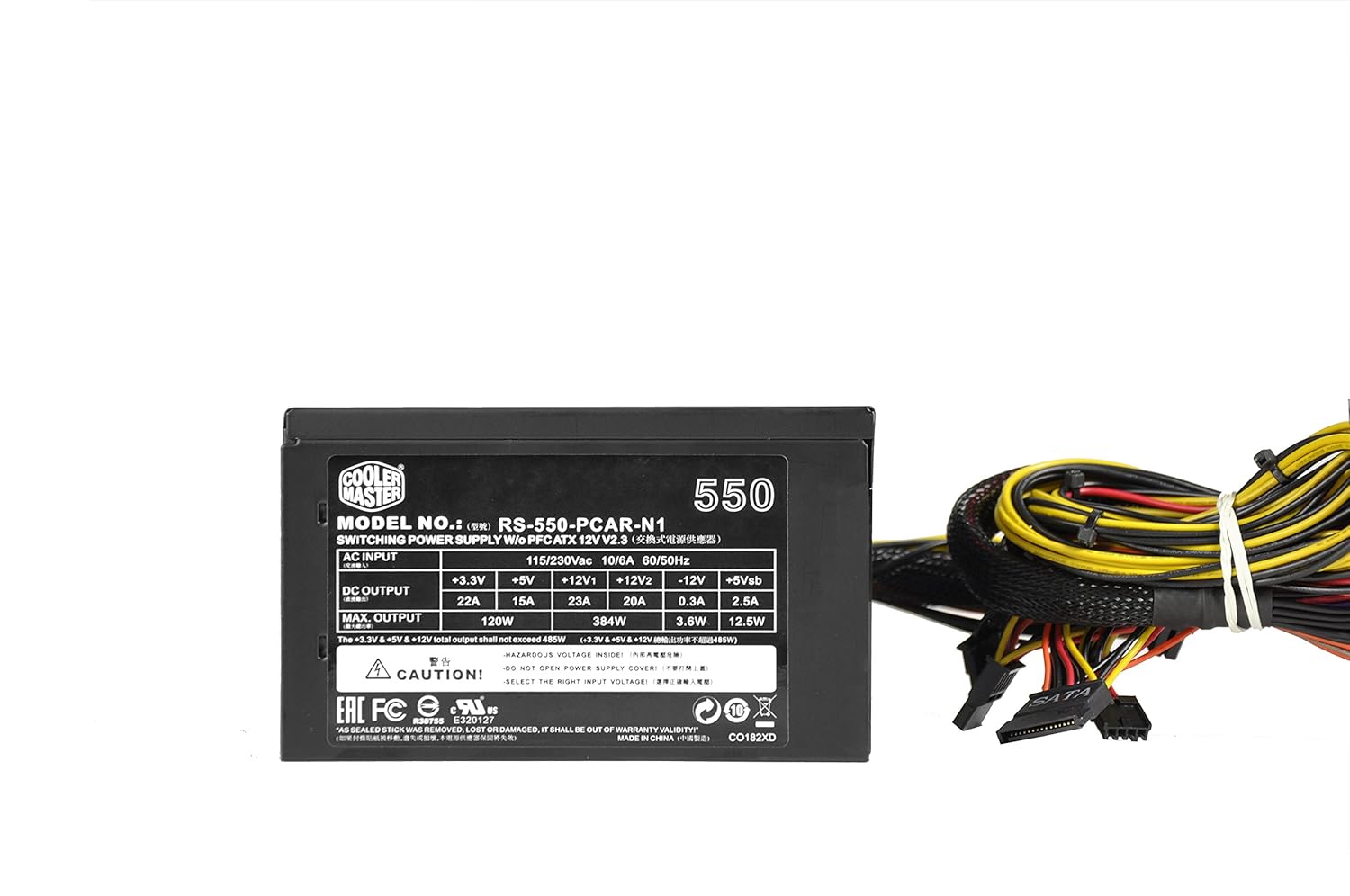

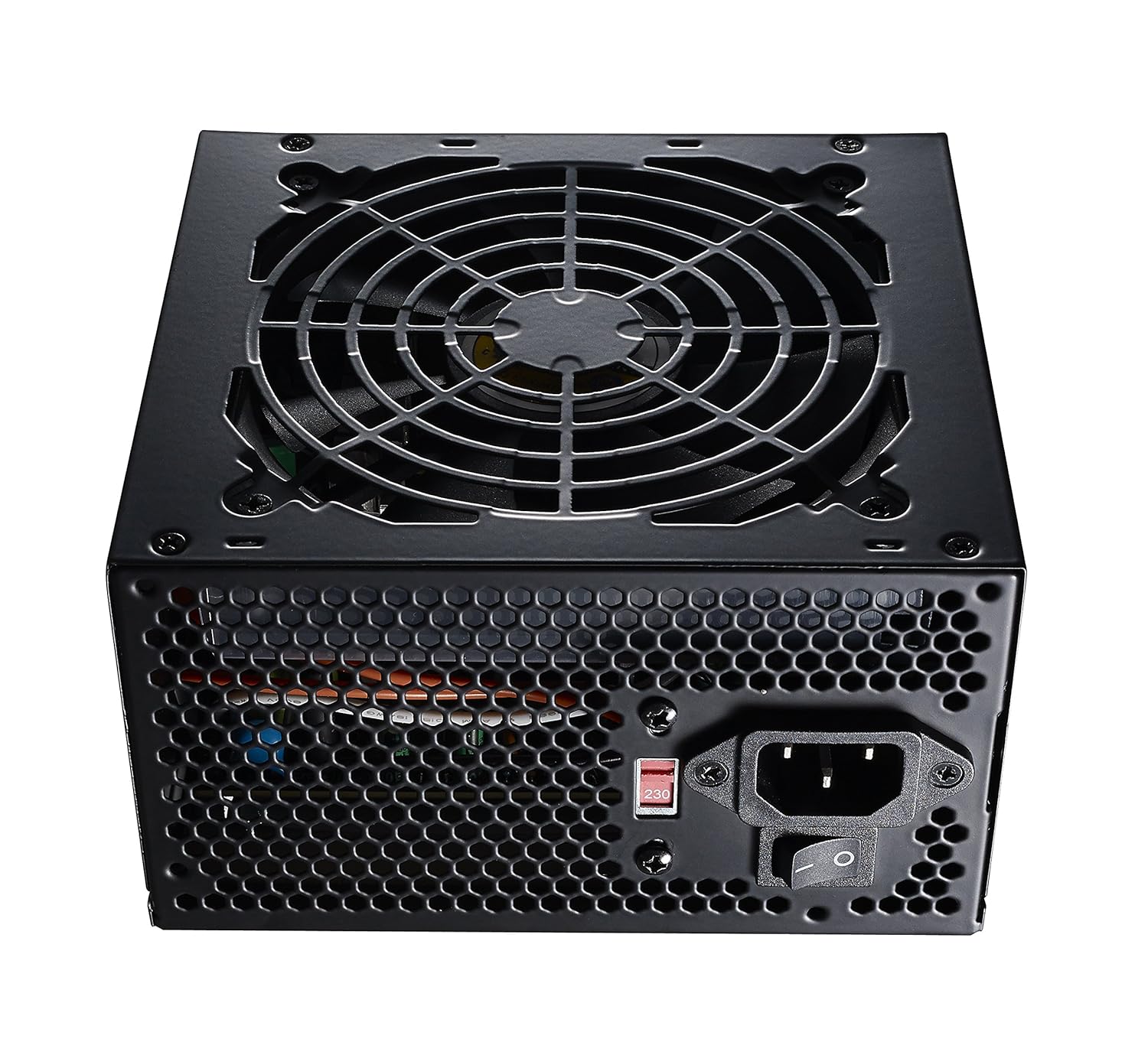

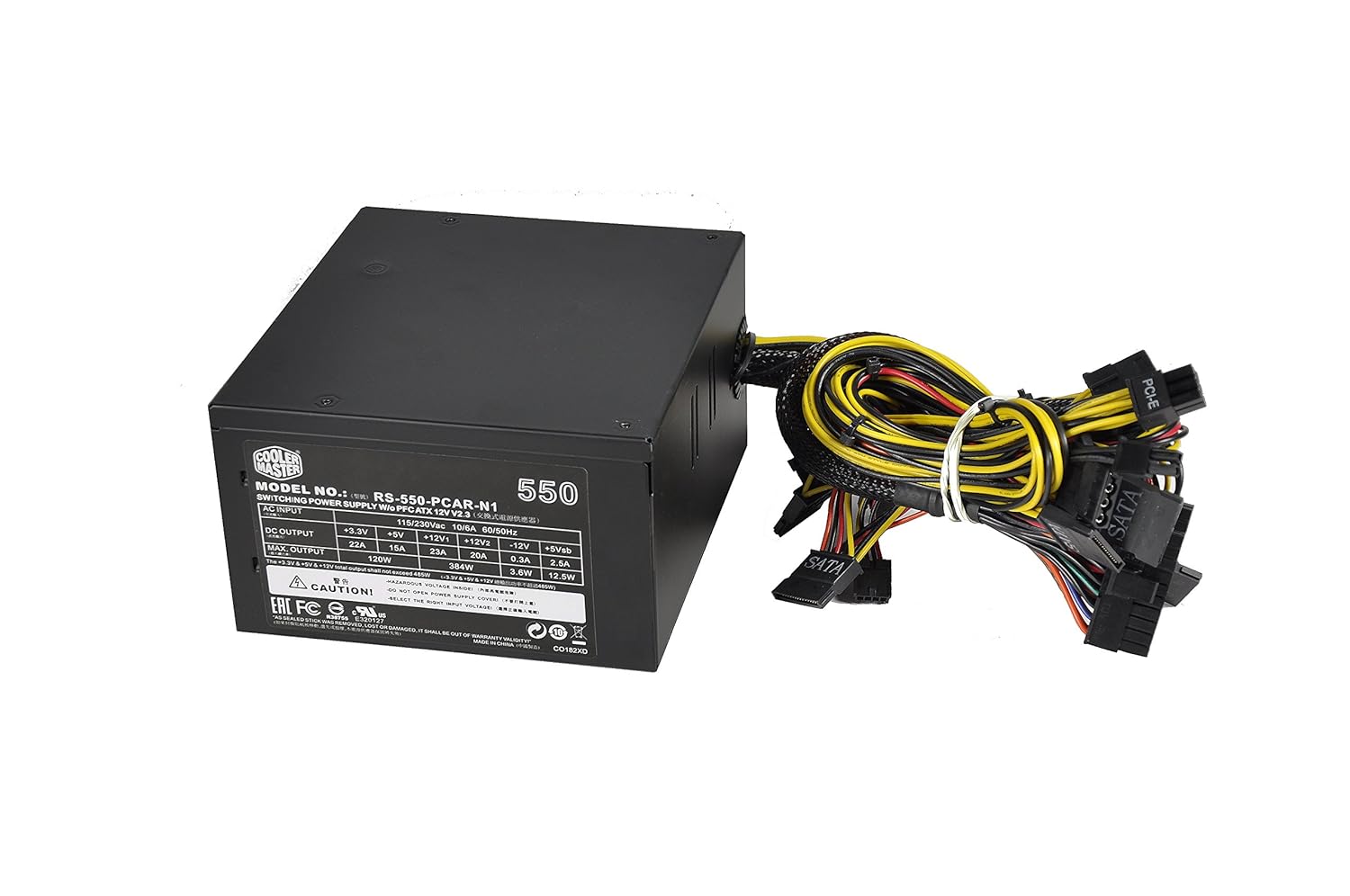

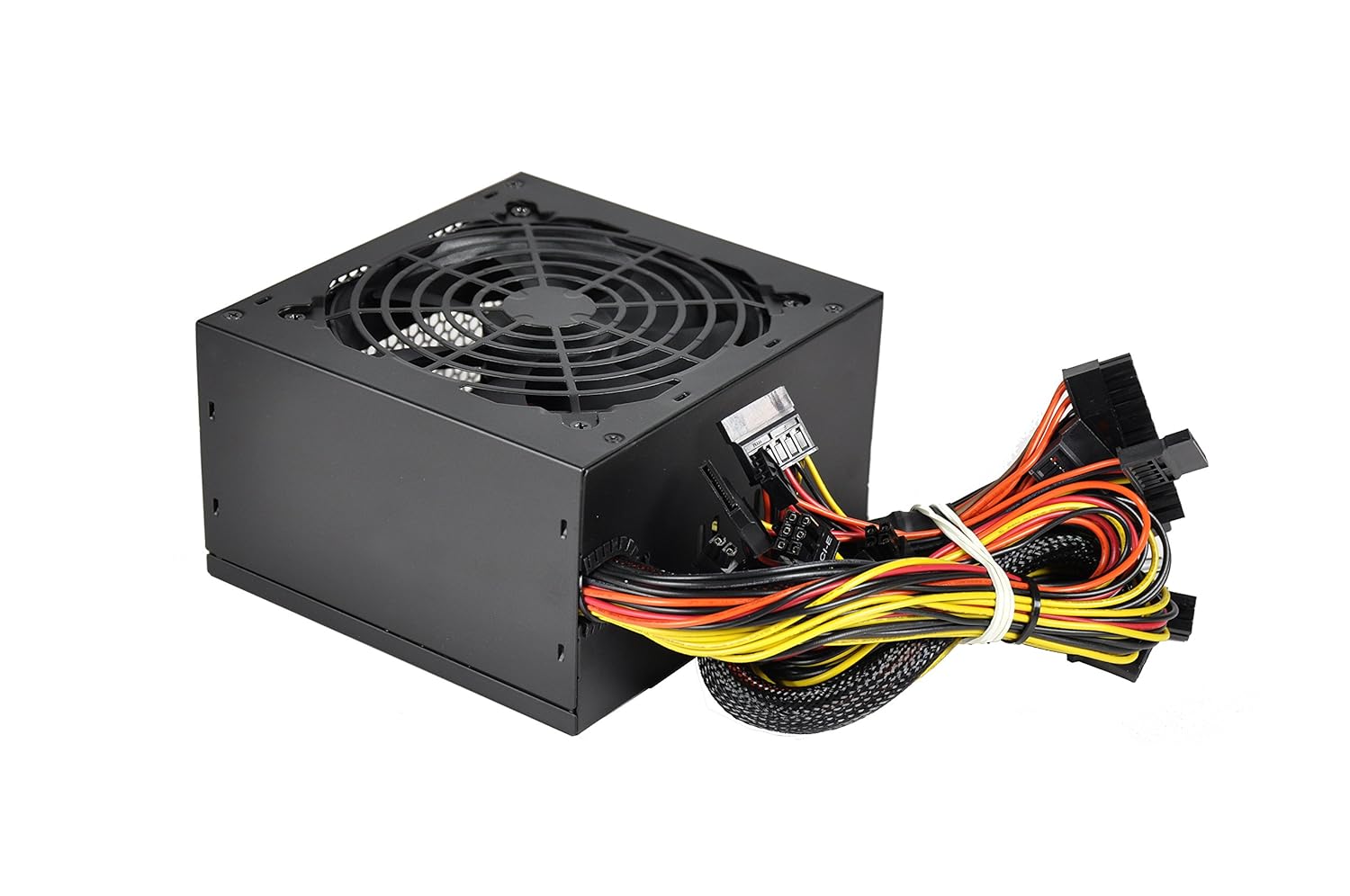

Cooler Master Elite V2-550W Long-Lasting Power Supply with Full Electrical Protection (OVP/UVP/OPP/OCP/SCP)

Brands Cooler Master
Product Code: B00I5VSWAQ
Availability: In Stock



Price : Rs.3915

This is the best price

Best Price : Rs.3915

Features

  • Compliance with the Intel standard ATX 12V V2.3
  • More than 70?ficiency at typical load operation
  • High performance components design for better reliability
  • Green power design to meet Energy Star and Blue Angel requirements
  • Multiple protection design (OVP/OCP/OPP/SCP)
  • Support dual +12V1 and +12V2 outputs for higher power usage
  • >75?ficiency at typical load operation
  • One 4+4 pin +12V CPU connector for high-end CPU support
  • 120mm quiet fan with intelligent fan speed controller
  • Compliance with Intel ATX12V V2.3
  • Full protection design (OVP/UVP/OPP/OCP/SCP)

Product description

Specifications

  • Mfr Part Number: RS550-PCARN1-US
  • Features:
    • Support dual +12v1 and +12v2 outputs for higher power usage
    • One 4+4pin +12V CPU connector for high-end CPU support
    • Compliance with Intel ATX12V v2.3
    • Fully protection design (OVP/UVP/OPP/OCP/SCP)
  • Type: ATX 12V v2.3
  • Output Capacity: 550V
  • Input
    • Voltage: 115 - 230V AC
    • Range: Select Switch
    • Frequency Range: 50 - 60Hz
  • PFC: N/A
  • Power Good Signal: 100 - 500ms
  • Hold Up Time: >16ms
  • MTBF: >100,000 Hours
  • Fan: 120mm Sleeve Fan
  • Efficiency: 75% Typical
  • Protection: OVP/ UVP/ OPP/ OTP/ SCP
  • Output: +3.3V @ 22A, +5V @ 15A, +12V1 @ 23A, +12V2 @ 20A, -12V @ 0.3A, +5Vsb @ 2.5A
  • Connectors: 1x 20+4pin Motherboard Connector, 1x 4+4pin CPU Connectors, 2x 6+2pin PCI-Express Connectors, 6x SATA Connectors, 3x 4pin Molex Connectors, 1x 4pin Floppy Connector
  • Regulatory: FCC/UL/EAC/BSMI
  • Dimensions: 5.9 x 5.5 x 3.4 inch / 150.0 x 140.0 x 86.0 mm



Technical Details

Brand Cooler Master
Model RS550-PCARN1-US
Model Year 2014
Item Weight 1.63 Kg
Product Dimensions 14 x 15 x 8.6 cm
Item model number RS550-PCARN1-US
Included Components Power supply - internal
Number Of Items 1
Voltage 110 Volts
Wattage 550 Watts
Power Source AC
Batteries Included No
Batteries Required No
Number of Ports 14
Material N/A
Form Factor ATX12V
Device Type Power Supply
Has Auto Focus No
Programmable Buttons No
