Docooler Motherboard Colorful Battle Axe C.A970X X5 V14 Motherboard Computer Mainboard Systemboard for AMD AM3/AM3+ DDR3 SATA3.0 USB3.0 ATX for Desktop

Brands Docooler
Product Code: B07PTQ1BSL
Availability: In Stock




Price : Rs.9705

This is the best price


Best Price : Rs.9705

Features

  • Supports for AMD AM3+/ AM3 Processor: Based on for AMD RX970 + SB950 chipset and support for AMD AM3/AM3+ series processors (TDP: 125W), delivering better overclocking capabilities with less power consumption.

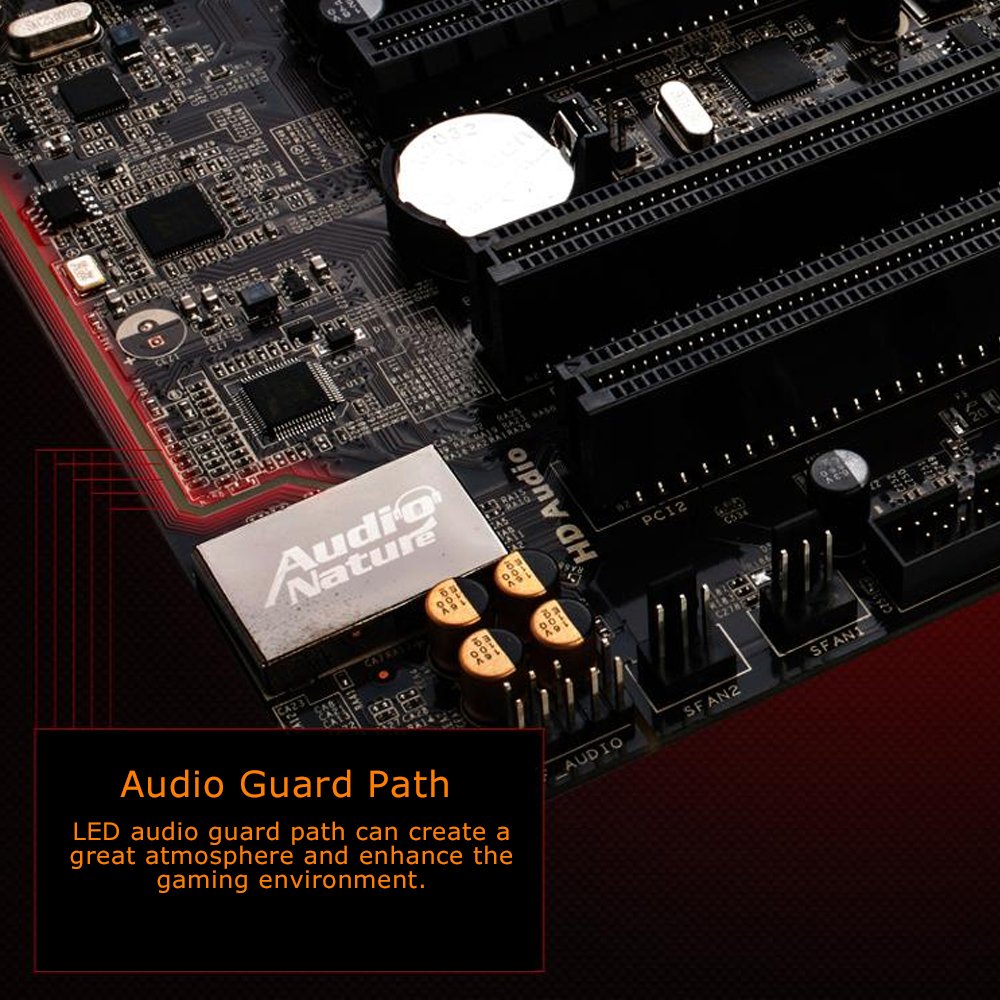

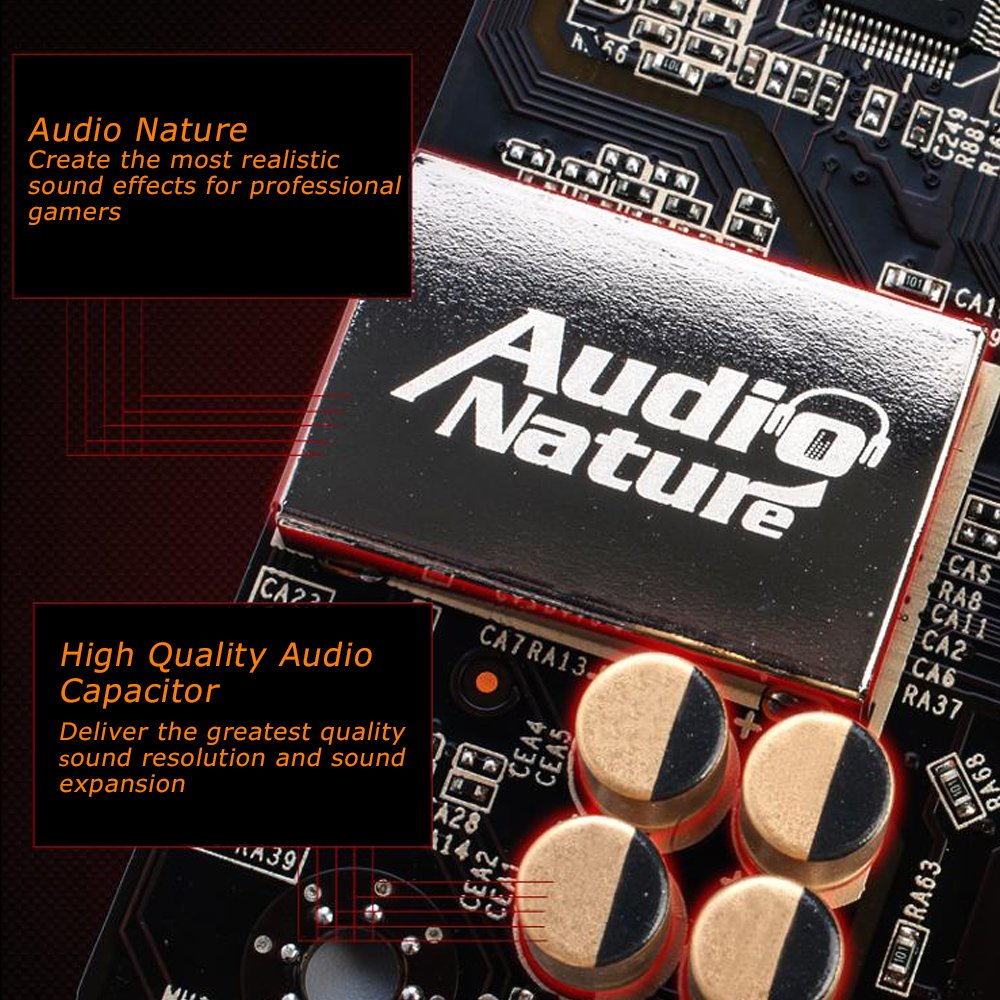

  • Audio Nature: High quality audio capacity with LED trace path lighting deliver the greatest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
  • Dual Channel DDR3: Four memory slots, support dual channel DDR3 1866(OC)/1600/1333/1066MHz memory.
  • Super Speed: USB3.0 High speed USB 3.0 ports with theoretical transfer speed up to 5.0 Gbps, backwards compatibility with USB2.0.
  • SATA3.0 6Gb/s: High-speed SATA Revision 3.0 compatible, delivering super fast 6Gbps link speeds which twice the data transfer rates fo SATA 2.0 (3Gbps).

Product description

Specifications:
Brand: Colorful
Model: Battle AXE C.A970X X5 V14
Chipset: for AMD RX970 + SB950 chipset
Processor: support for AMD AM3/AM3+ series processors(TDP: 125W)
Memory: 4 * memory slots, support DDR3 dual channel 1866(OC)/1600/1333/1066MHz memory

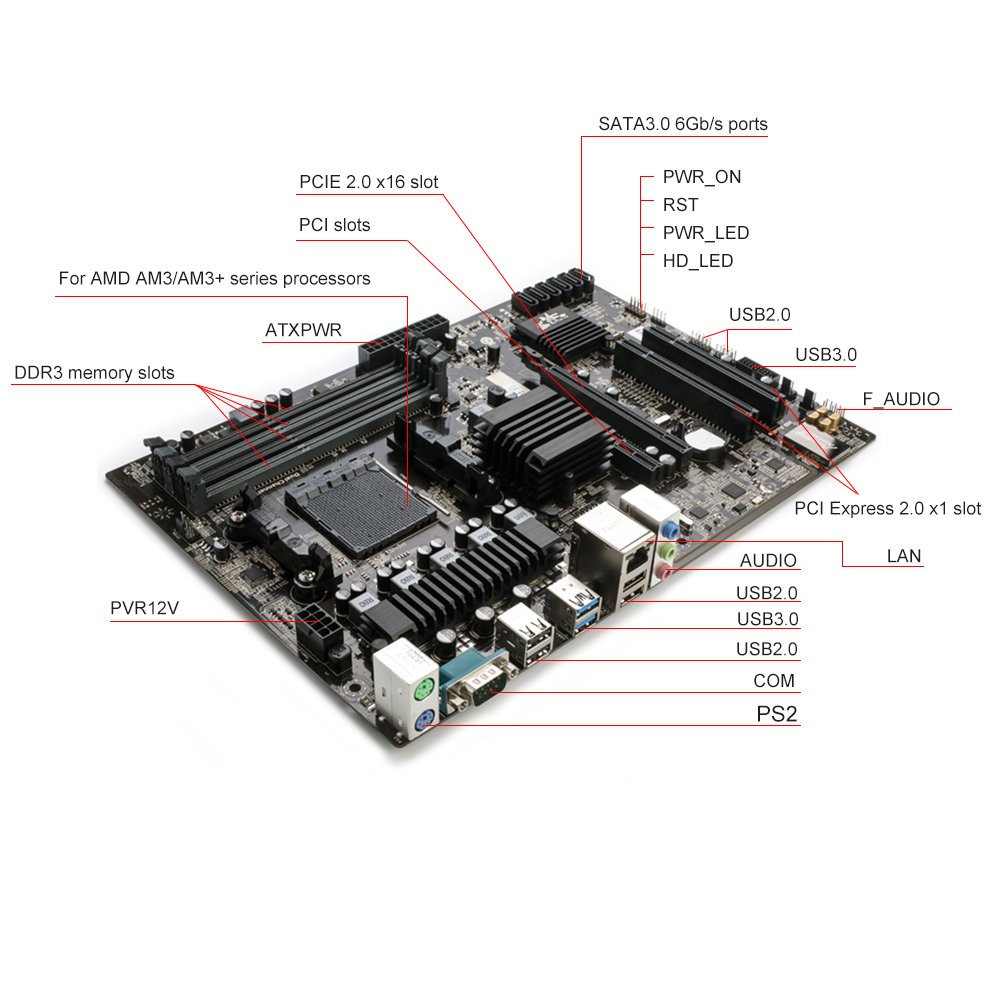

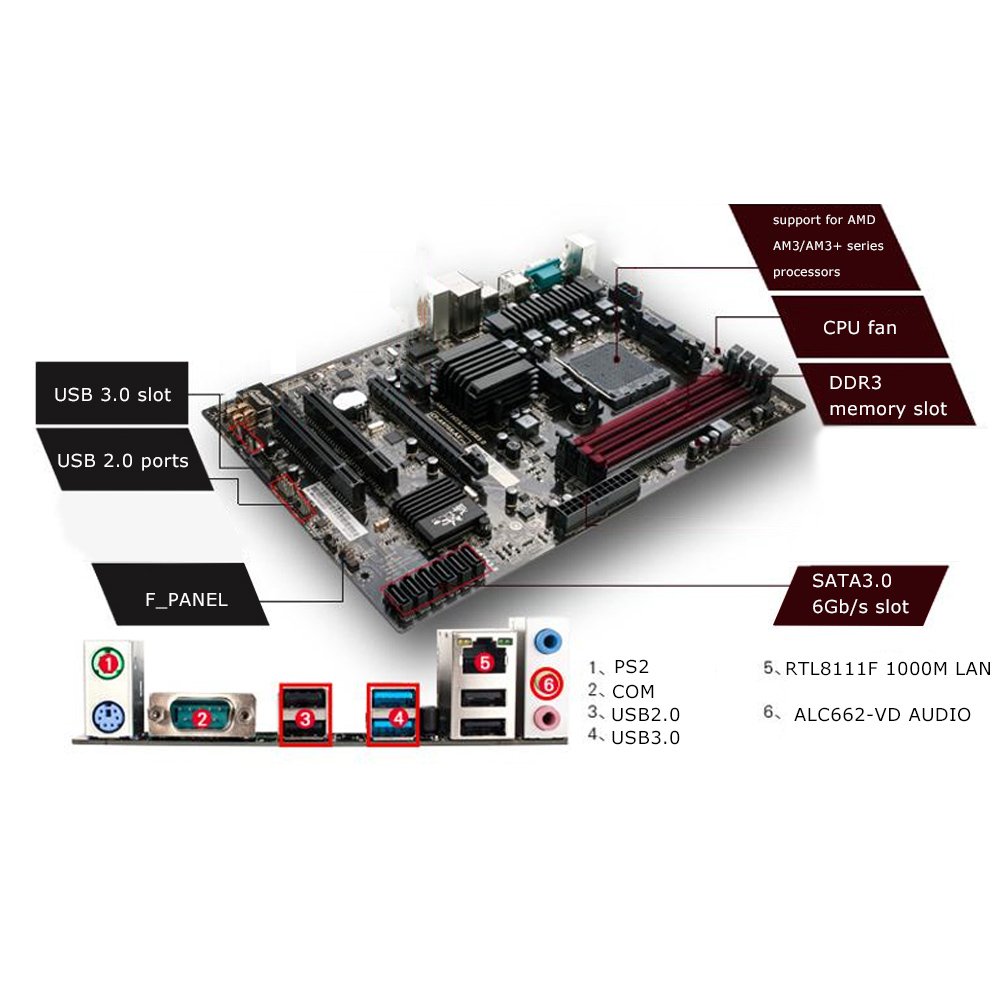

Board I/O: 1 * COM, 8 * USB2.0 (4 at back panel, 4 at mid-board), 4 * USB3.0 ports (2 at back panel, 2 at mid-board), 2 * PS/2 ports, 3 audio ports (6-CH audio support); 6 * SATA 3 ports, support RAID 0,1,10,5, RJ45 LAN
Expansion slots: 1 * PCI Express 2.0 x16 slot, 1 * PCI Express 2.0 x1 slot, 2 * PCI slots
SATA ports: 6 * SATA3.0 6Gb/s, support AHCI/RAID0,1,5,10
BIOS: 32M UEFI

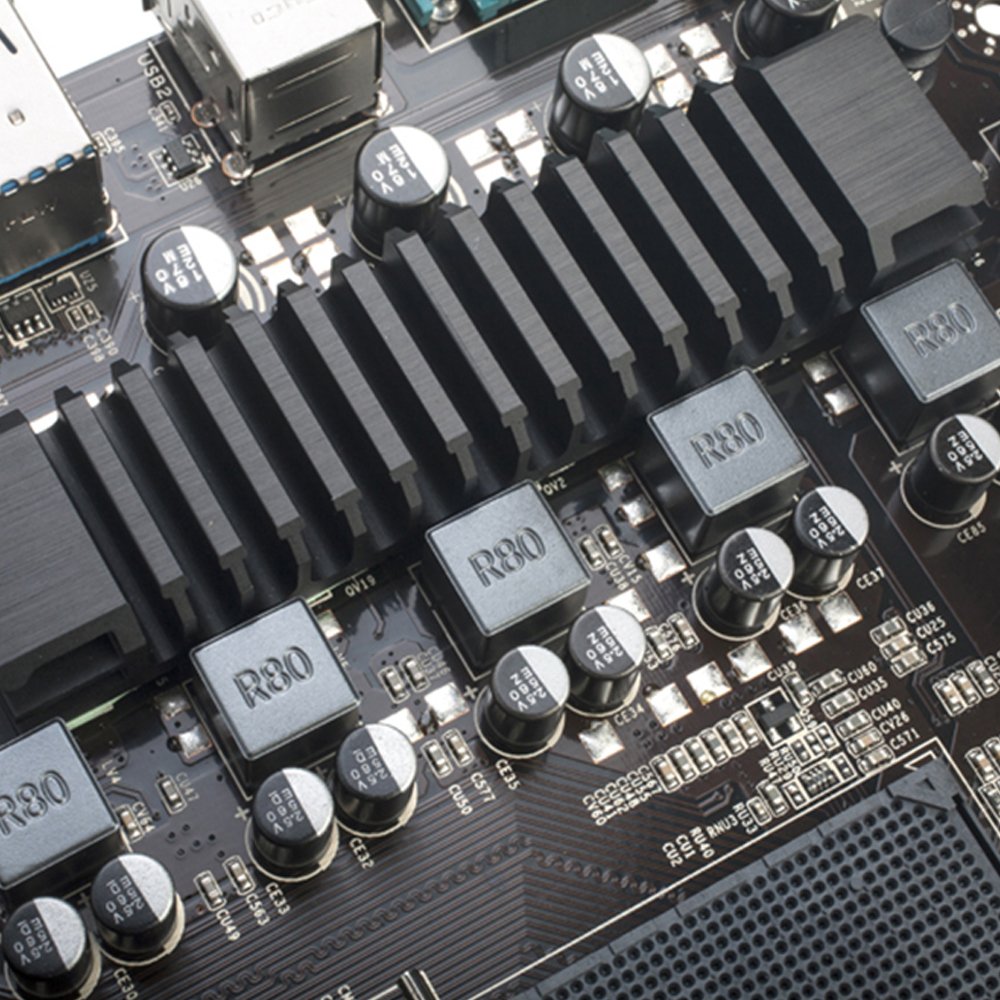

Power management: 5 phase power supply?TDP<=125W processors supported
Hardware monitor: CPU fan speed controlled, SYSTEM fan speed monitoring, CPU temperature monitoring, system temperature monitoring, voltage monitoring
LAN: onboard RTL8111F 1000M LAN
Audio: ALC662-VD
Maximum ram capacity(total): 32GB
IO chipset: F71808EU
Configuration: 205 * 295mm ATX / 80.7 * 116.14in ATX
Other Features: Colorful Netlive4.0?PXE
Package size: 27 * 26 * 5.7cm / 10.62 * 10.23 * 2.24in (L * W * H)
Package weight: 1063g / 2.34lb

Package List:
1 * motherboard
2 * SATA cables
1 * CD driver
1 * IO shield
1 * User manual (Chinese)



Technical Details

Brand Docooler
Item Weight 1.09 Kg
Package Dimensions 27 x 26 x 5.7 cm
Item part number SWW6549858358449IG
Processor Socket Am3+
