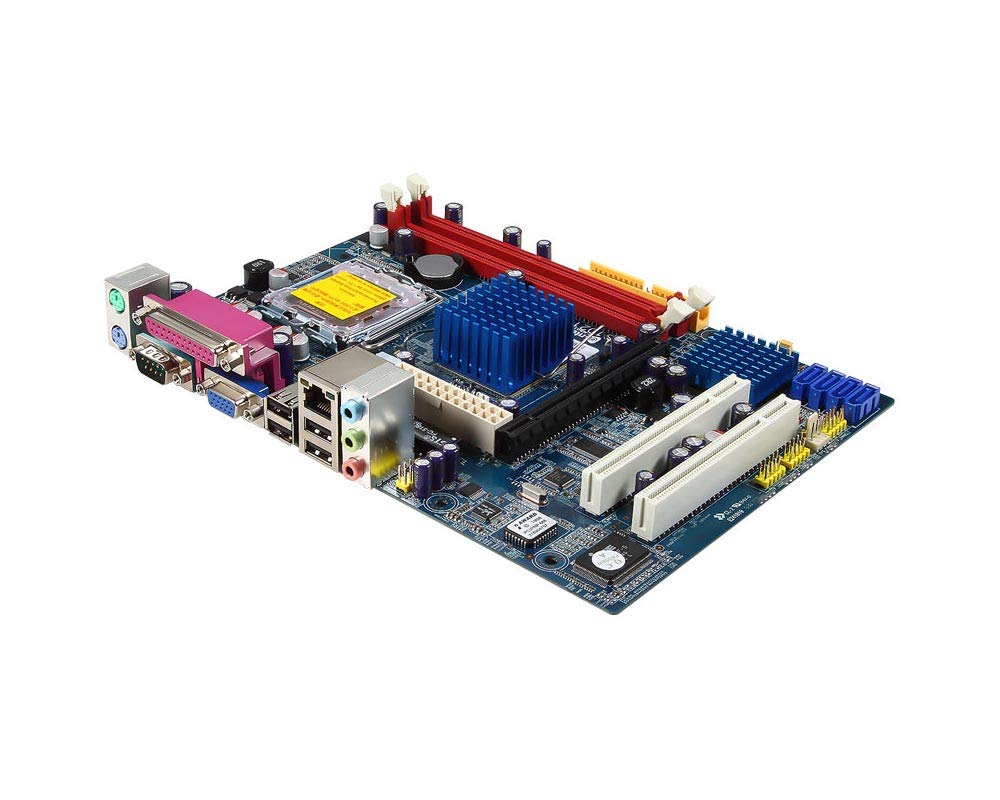

Enter E-MBG31 Motherboard with Intel G31 + ICH7 Chip Set

Specifications : Processor Support – LGA775 for Intel Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium Dual Core, Pentium D, Pentium 4, Celeron (Conroe-L) and next generation 45nm Yorkfield & Wolfdale Processors.Compatible with all 1333/1066/800/533 MHz FSB CPUs.

Chip Set : Intel G31 + ICH7.

Memory Support : Dual Channel DDR2 memory technology/2 x DDR2 DIMM slots/Supports DDR2 800/667 non-ECC, un-buffered memory.

LAN Port : Realtek RT8105S Ethernet Controller (10/100Mbit).

Audio : Realtek ALC883 5.1 Channel

Expansion Slots :

• 1 x PCI Express x16 slot
• 2 x 2 PCI slots


• Back panel :
• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x Serial Port
• 1 x Parallel Port
• 1 x VGA Port
• 4 x Ready-to-Use USB 2.0 Ports
• 1 x RJ-45 LAN Port,HD Audio Jack.


• On-Board connectors :
• 1 x 24-pin ATX power connector
• 1 x 4-pin ATX 12V power connector
• 1 x IDE connector
• 4 x SATA 3Gb/s connectors
• 1 x CPU fan connector
• 1 x front panel connector
• 1 x front audio connector
• 1 x USB 2.0 header for additional 2 USB 2.0 ports


• Slots Available :
• 1 x PCI Express x 16 slot
• 2 x PCI slot


• In Box :
• 1 x E-MBG31 Motherboard
• 1 x Manual
• 1 x CD
• 1 x SATA cable
• 1 x IO shield
