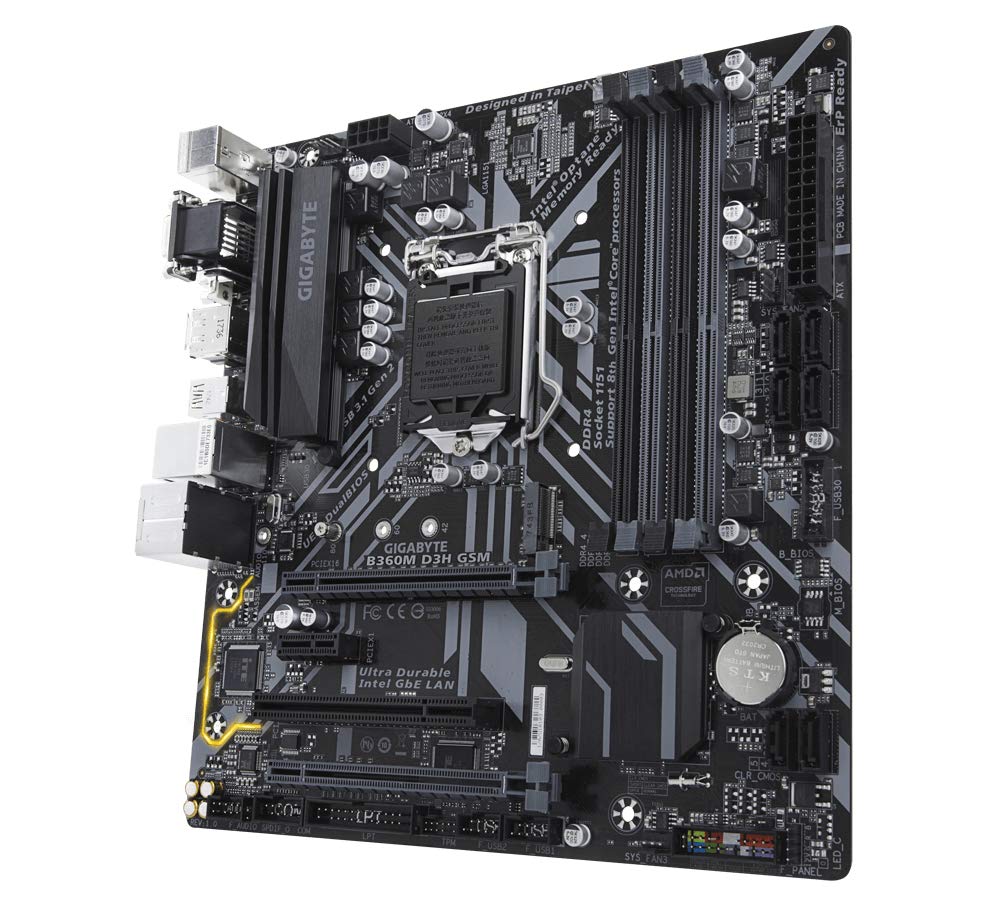

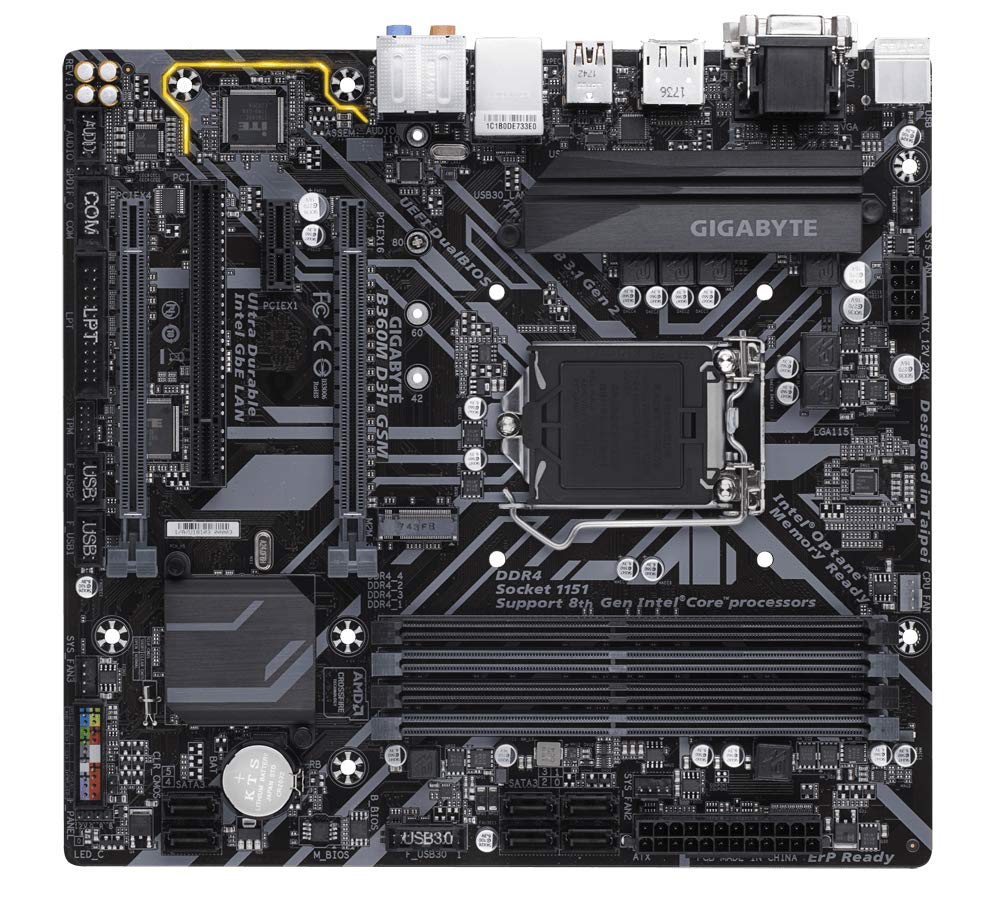

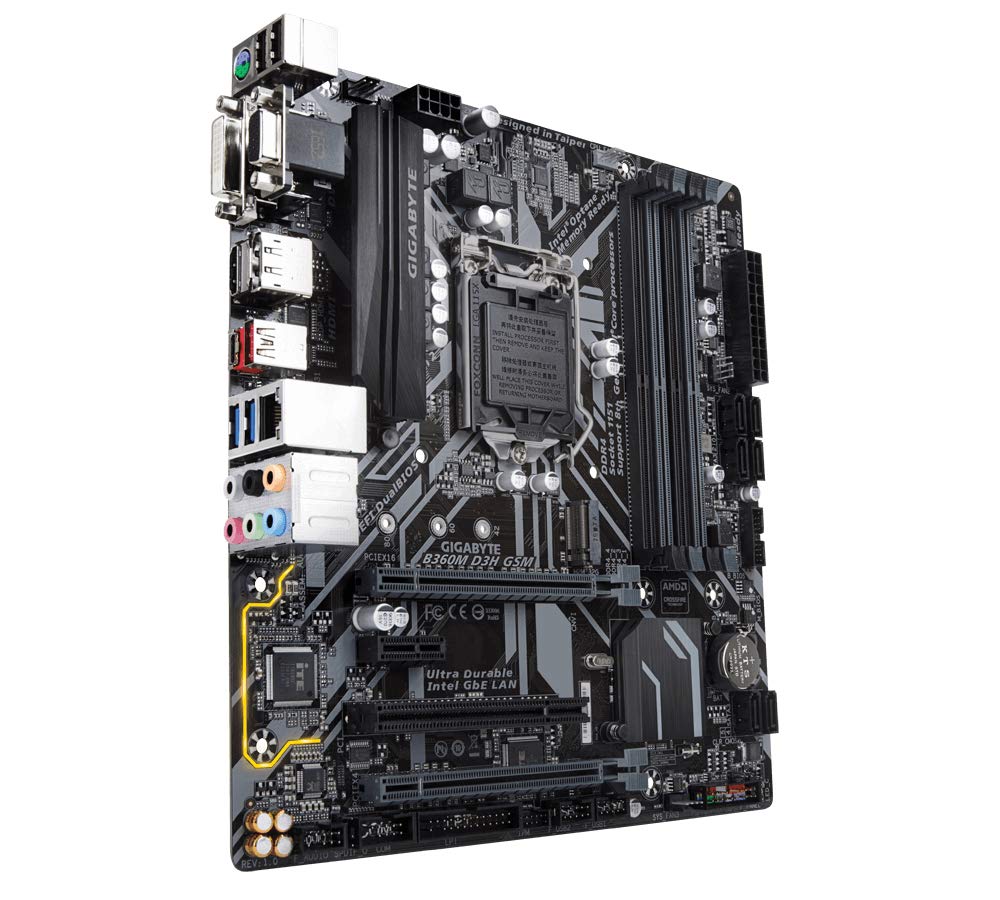

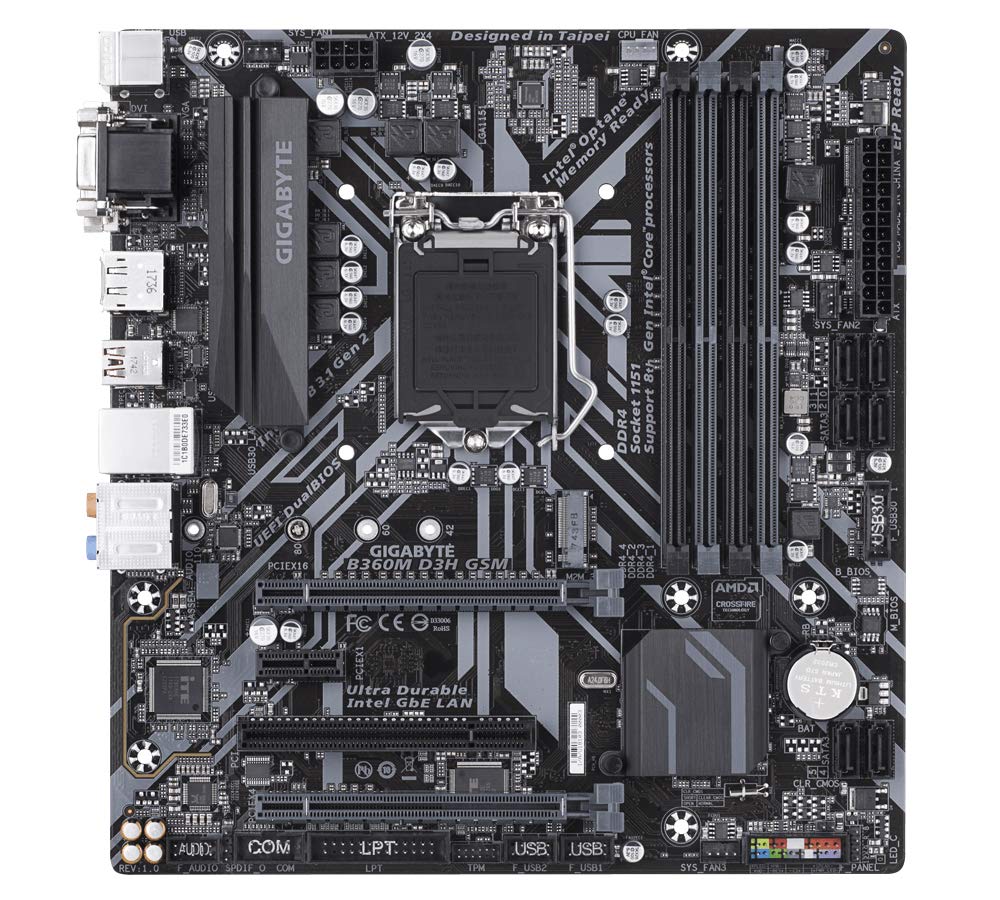

GIGABYTE B360M D3H GSM LGA1151/Intel B360/DDR4/Quad CrossFireX/SATA3&USB3.1/M.2/A&GbE/MicroATX Motherboard

Specifications Mfr Part Number: B360M D3H GSM CPU: LGA1151 Supports the 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors L3 cache varies with CPU Chipset: Intel B360ÂExpress Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x4), 1x PCI-Express 3.0 x1 Slot, 1x PCI Slot Multi-Graphics: ÂSupports AMD Quad-GPUÂand 2-Way CrossFireX Technology Storage: SATA: 6x SATA3 Ports M.2: 1x M.2 Port (w/ M key), Supports type 2242/ 2260/ 2280/ 22110 SATA and PCIe x4/x2 SSDÂAudio: Realtek ALC892Â7.1-Channel High Definition Audio CODEC LAN: Intel Gigabit Ethernet Controller Ports: Â1x USB 3.1 Gen 2 Port (Type-A rear), 5x USB 3.1 Gen1 Ports (1 Type-C rear, 2 rear, 2 via header), 6x USB 2.0/1.1 Ports (2 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port , Audio I/O Jacks Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector Form Factor: MicroATX, 24.4Âx 23.0Âcm
