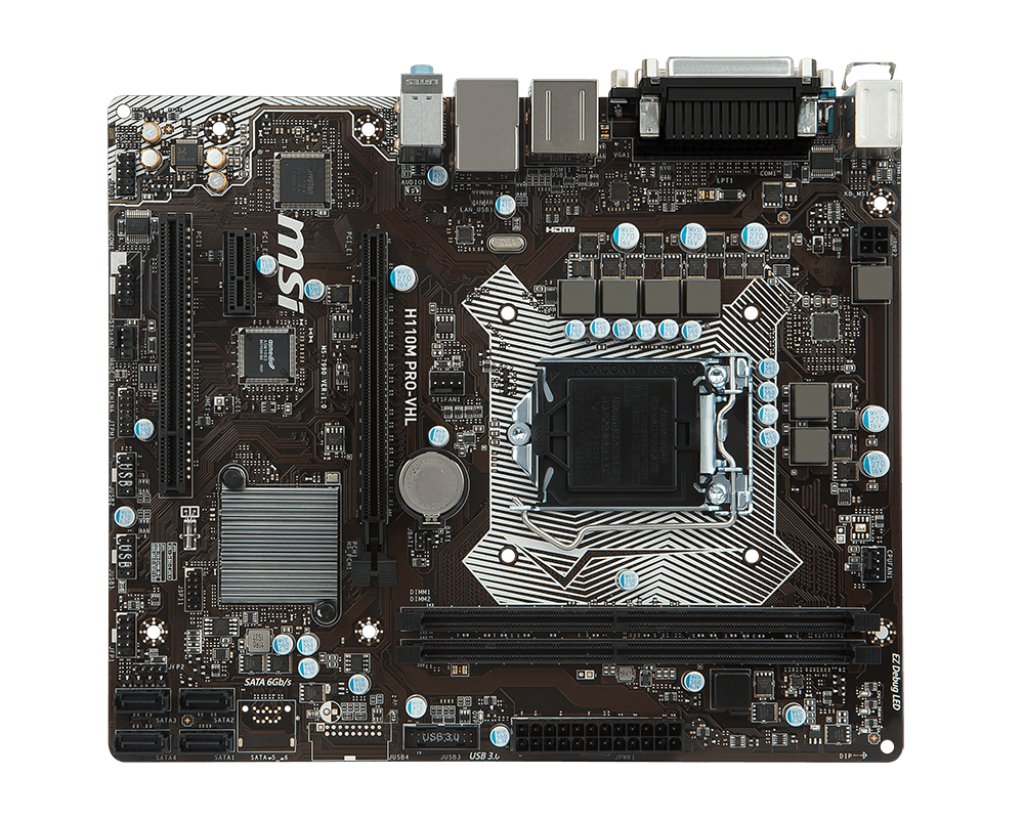

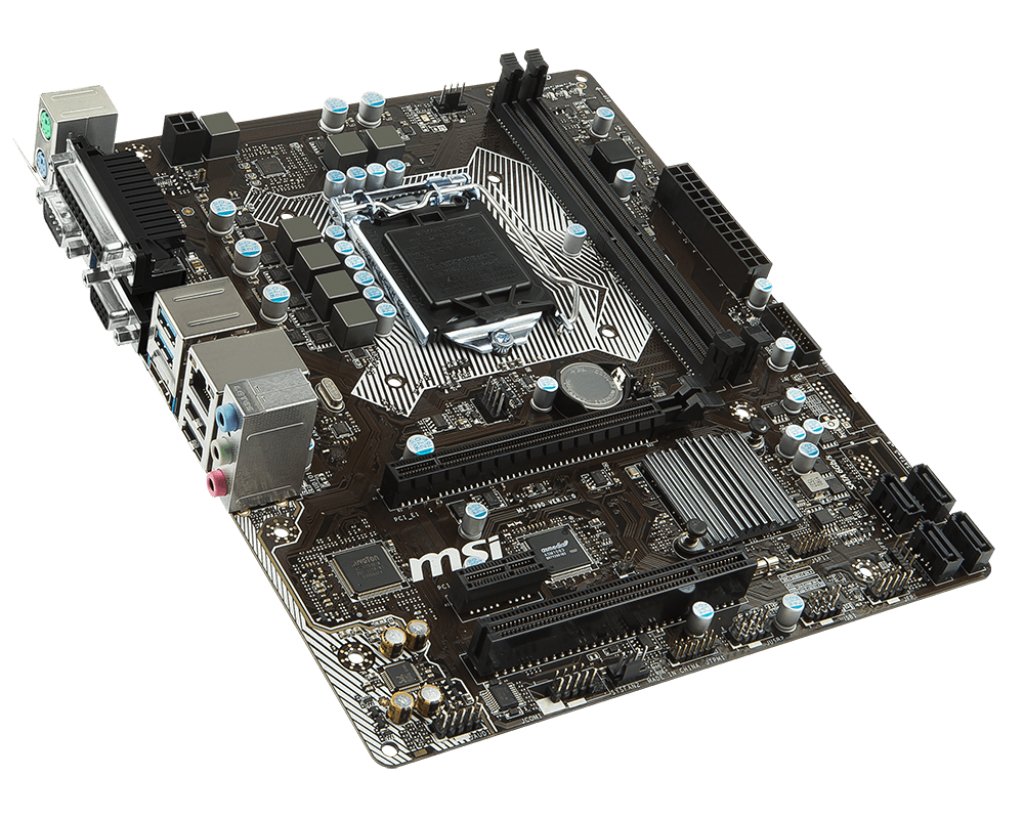

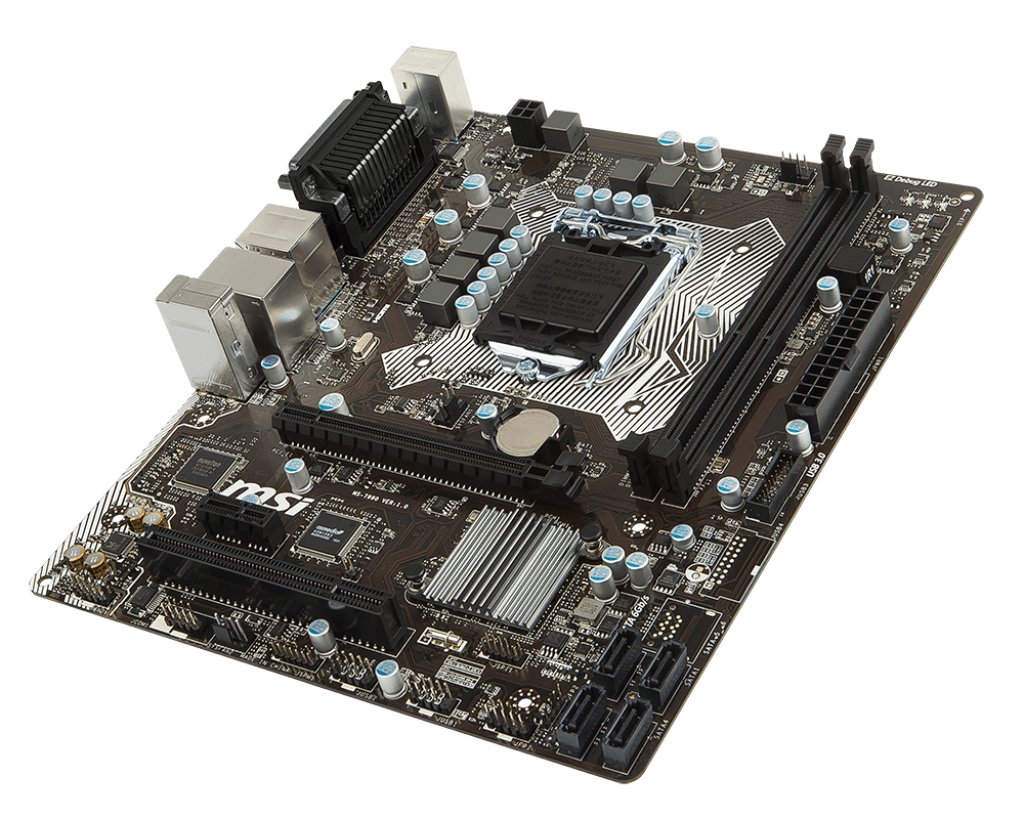

MSI CSM-H110M Pro-VHL LGA 1151 DDR4 USB 3.1 Micro ATX Intel Motherboard
| Brands | MSI |
| Product Code: | B01C3NTXL8 |
| Availability: | In Stock |
Price : Rs.4720
This is the best price
Best Price : Rs.4720
Features
- Core i7 / i5 / i3 / Pentium / Celeron (LGA1151) 6th Generation
- DDR4 Boost with Military Class Components
- Enhanced CPU Overcurrent Protection
- VGA Armour: Reinforced Pci Express Slots
- Perfect For Industrial And Commercial Use
- USB 3.1 Gen1 + SATA 6Gb/s
- 4K UHD Support : Ultra-high Definition Visual Experience
Product description
|

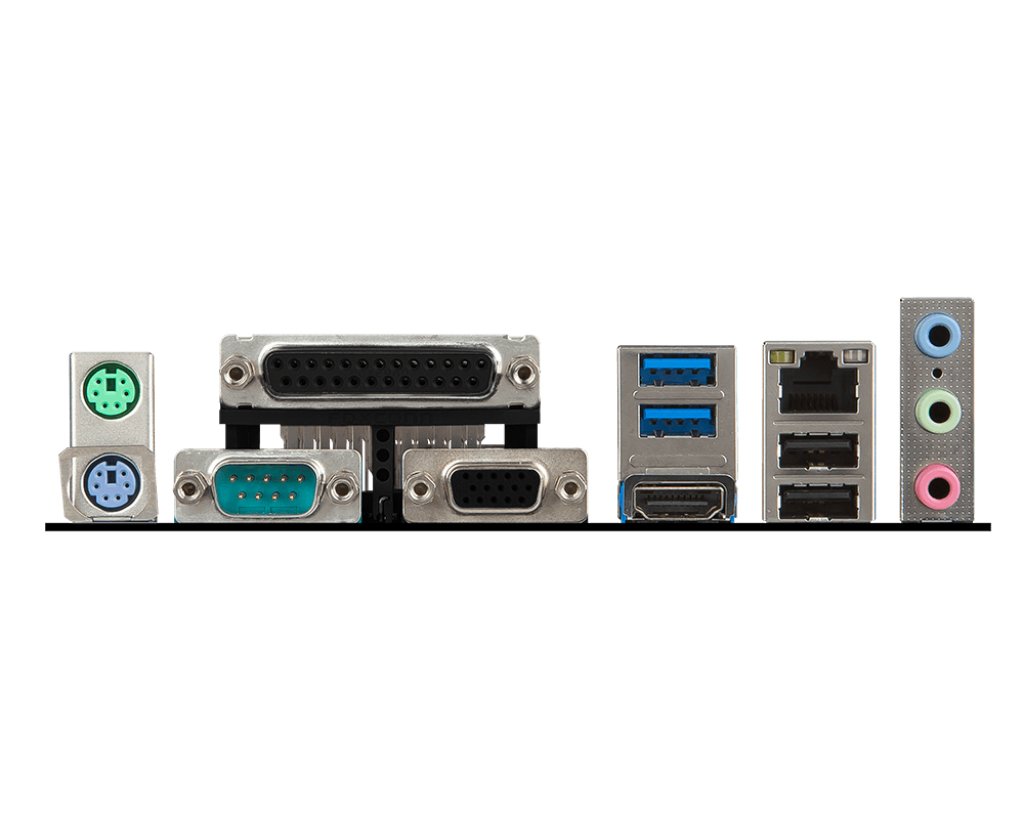

Manufacturer part number: CSM-H110M PRO-VHL CPU: LGA1151. Supports 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors Chipset: Intel H110 Memory: 2x DDR4-2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB Slots: 1x PCI-Express 3.0 x16 Slot, 1 PCI-Express 3.0 Slot, 1 PCI Port SATA: 4x SATA3 Ports Audio: Realtek ALC887 7.1 Channel high definition audio Codec LAN: Realtek RTL8111H Gigabit Ethernet controller ports: 4 USB 3.1 ports (2 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1 PS/2 keyboard port, 1 PS/2 mouse port, 1 VGA Port, 1 HDMI port, 1 serial port, 1 parallel port, 1 RJ45 LAN port, audio I/O jacks power connector: 1x 24pin ATX main power connector, 1 4 pin ATX 12V power connector form factor: MicroATX, 9.6 x 8.1 inch / 24.3 x 20.5 cm NOTE: Need Bios update for Kabelake CPUs. |
Technical Details
| Brand | MSI |
| Item Height | 5 Millimeters |
| Item Width | 20.6 Centimeters |
| Item Weight | 699 g |
| Product Dimensions | 24.4 x 20.6 x 0.5 cm |
| Item model number | 7990-005R |
| Processor Socket | Socket 1151 |
| Number of USB 2.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Number of Serial Ports | 1 |
| Operating System | Windows |
| Included Components | MSI CSM-H110M PRO-VHL microATX Motherboard |
