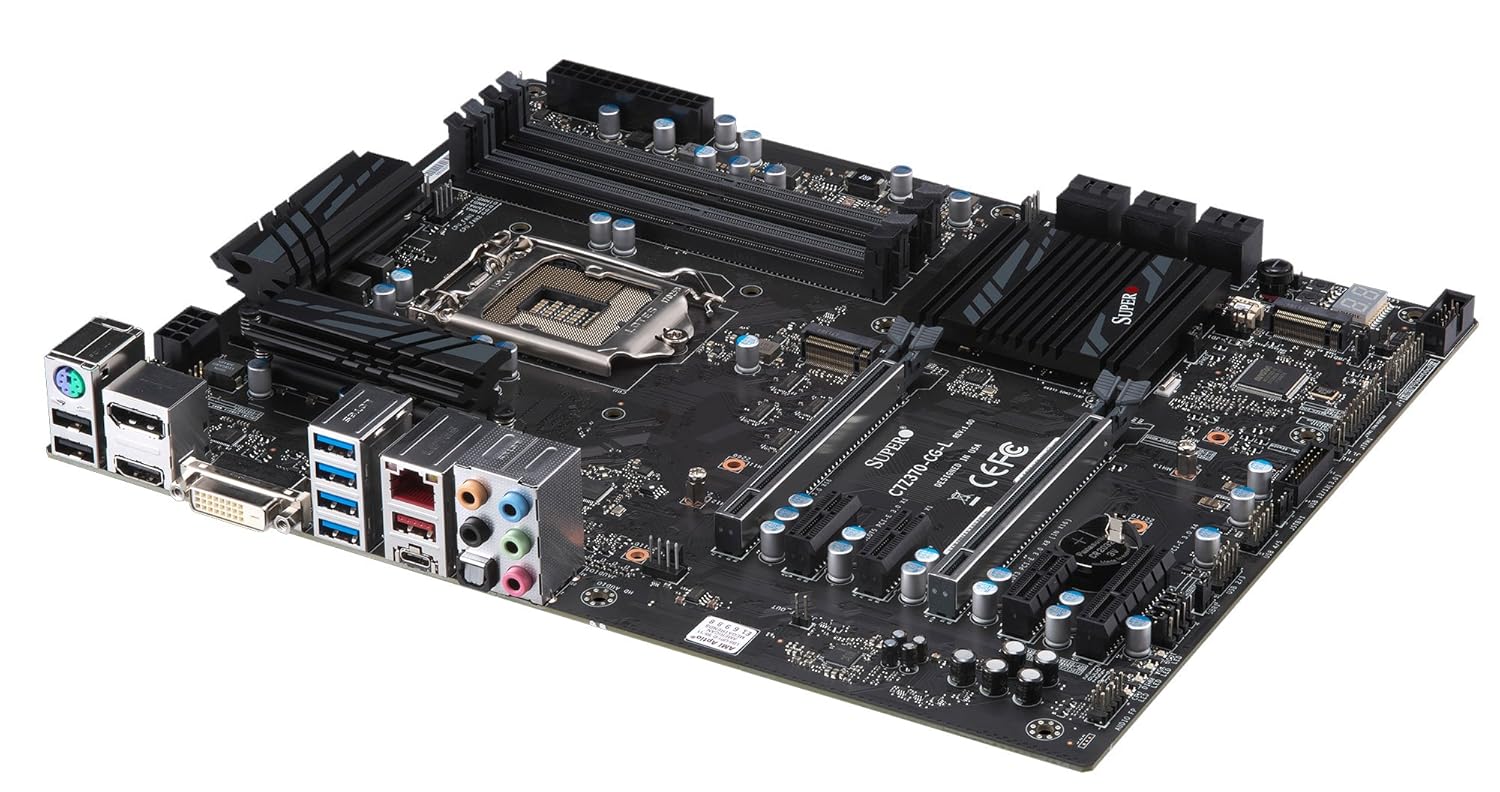

Supermicro Z370 C7Z370-CG-L Socket LGA 1151 Motherboard
| Brands | Supermicro |
| Product Code: | B077K325TB |
| Availability: | In Stock |
Price : Rs.25975
This is the best price
Best Price : Rs.25975
Features
- Intel Z370 Express
- Up to 64GB Unbuffered non-ECC UDIMM, DDR4-3000MHz (OC), in 4 DIMM slots

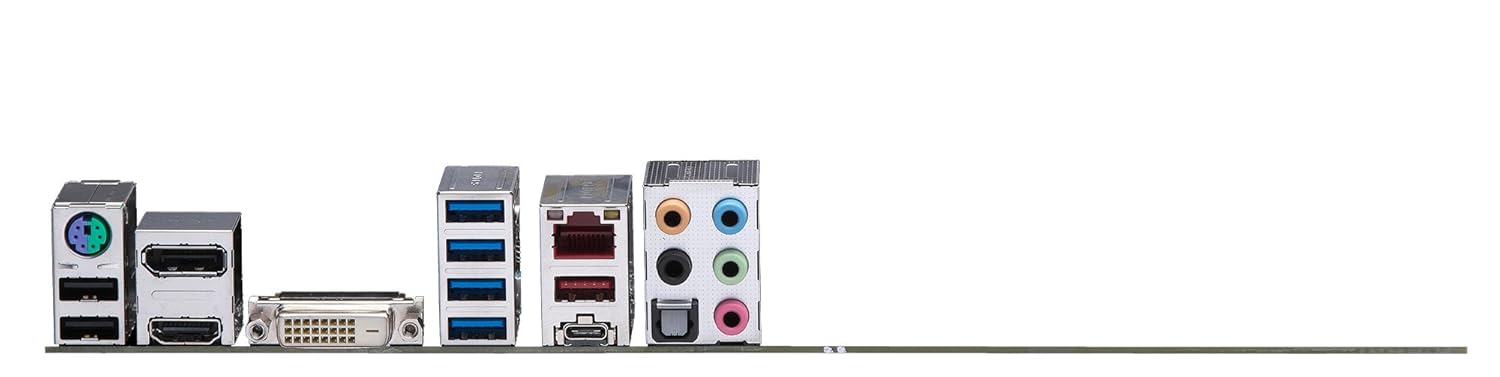

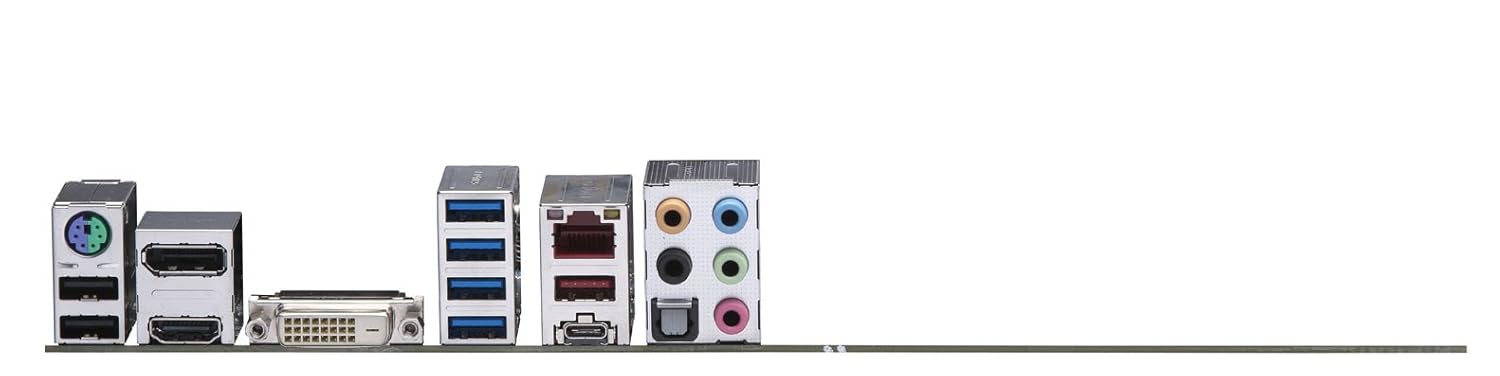

- 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, DP up to 1.2; HDMI up to 1.4b
- Intel Z370 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Single LAN with Intel single Ethernet PHY i219V
Product description
|
8th Generation Intel Core i3 Processors, 8th Generation Intel Core i5 Processors, 8th Generation Intel Core i7 Processors., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP Intel Z370 Express Up to 64GB Unbuffered non-ECC UDIMM, DDR4-3000MHz (OC), in 4 DIMM slots 2 PCI-E 3.0 x16 slots (16/NA or 8/8), 1 PCI-E 3.0 x4, 3 PCI-E 3.0 x1 M.2 Interface: 1 PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 M.2 Form Factor: 2260/2280/22110, 2260/2280/22110 M.2 Key: M-Key, M-Key (RAID 0,1 support) 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, DP up to 1.2; HDMI up to 1.4b Intel Z370 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
Technical Details
| Brand | Supermicro |
| Model | MBD-C7Z370-CG-L-O |
| Model Year | 2017 |
| Item Weight | 998 g |
| Product Dimensions | 10 x 10 x 10 cm |
| Batteries: | 1 CR123A batteries required. |
| Item model number | MBD-C7Z370-CG-L-O |
| Processor Socket | Socket 1151 |
| Voltage | 1.2 Volts |
| Batteries Included | No |
| Batteries Required | No |
| Battery Cell Composition | Lithium Metal |
| Total Usb Ports | 8 |
| Form Factor | ATX |
| Has Auto Focus | No |
| Supports Bluetooth Technology | No |
| Programmable Buttons | No |
