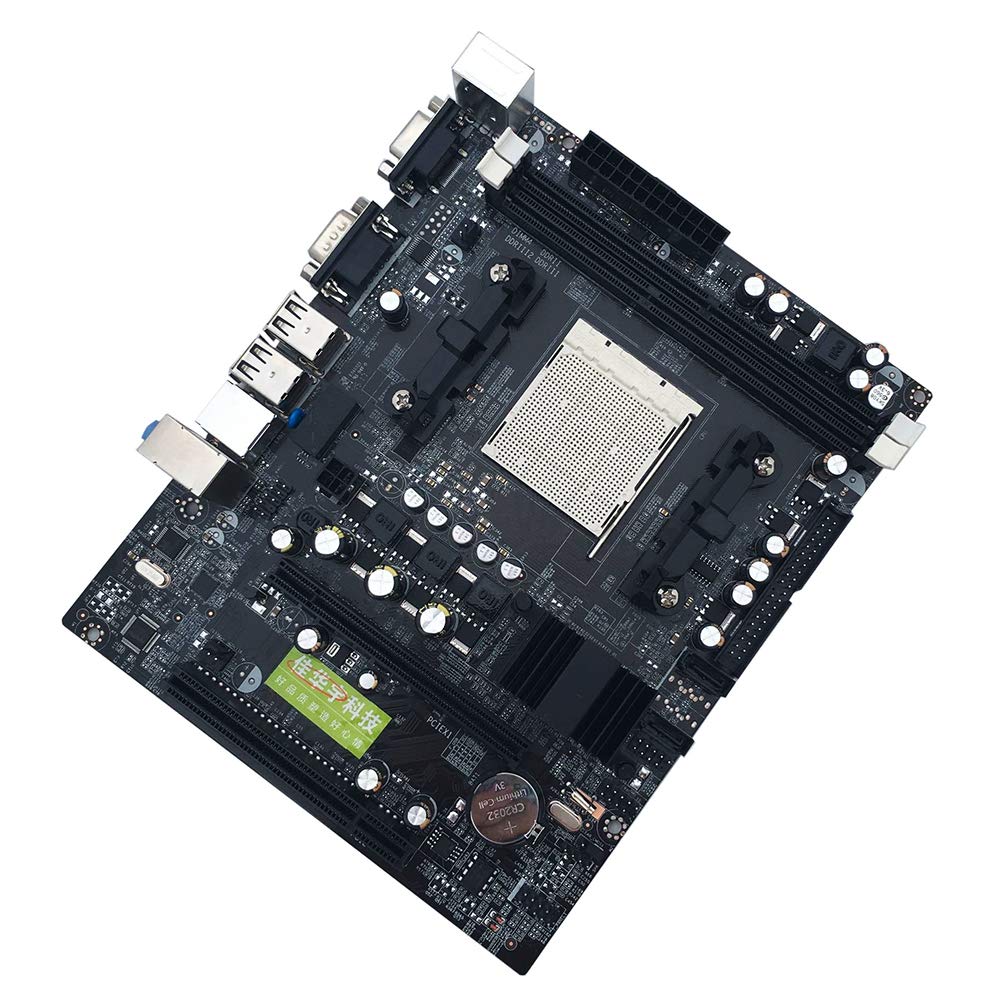

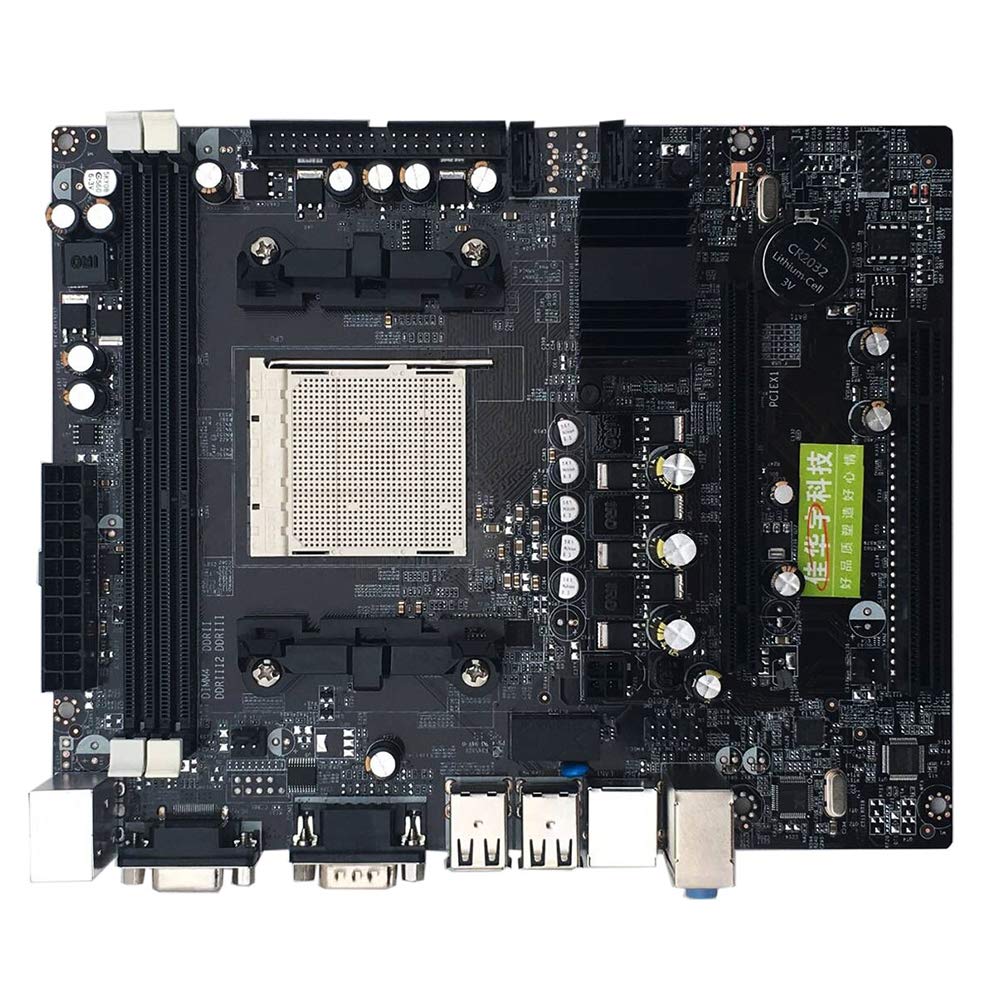

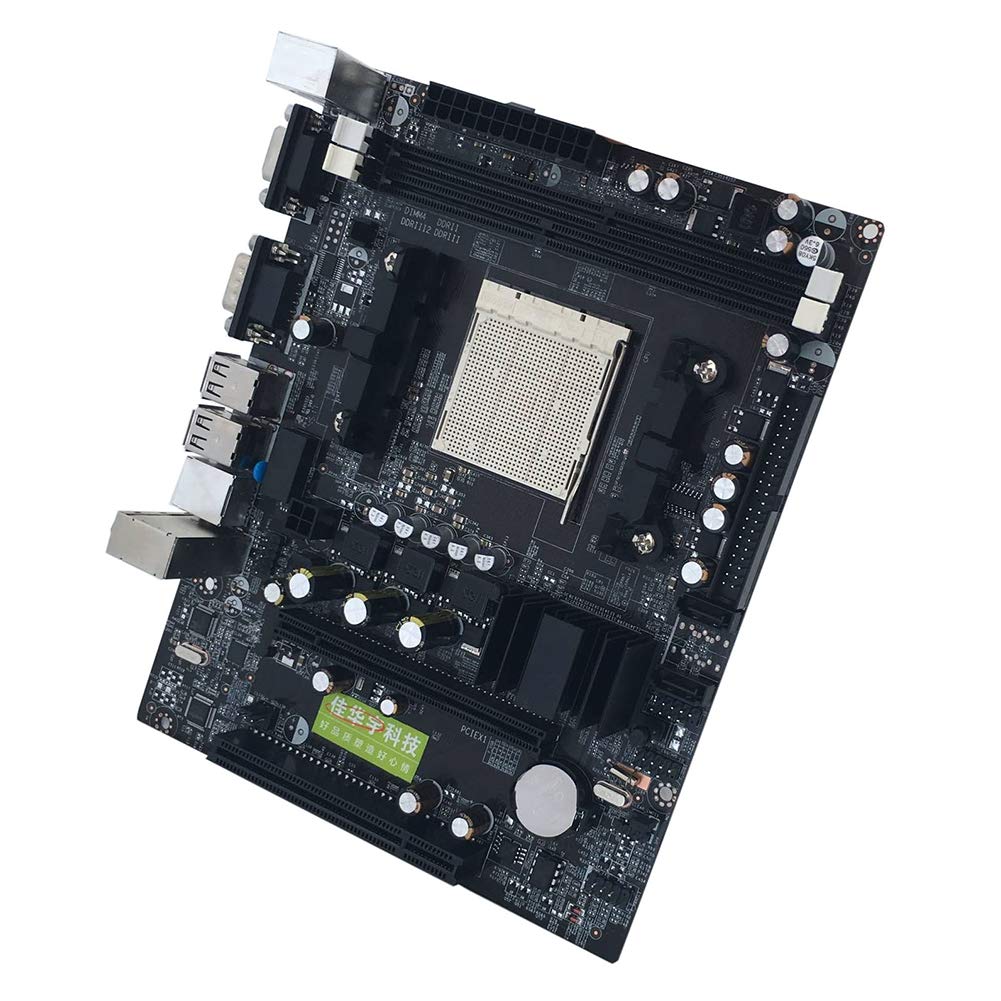

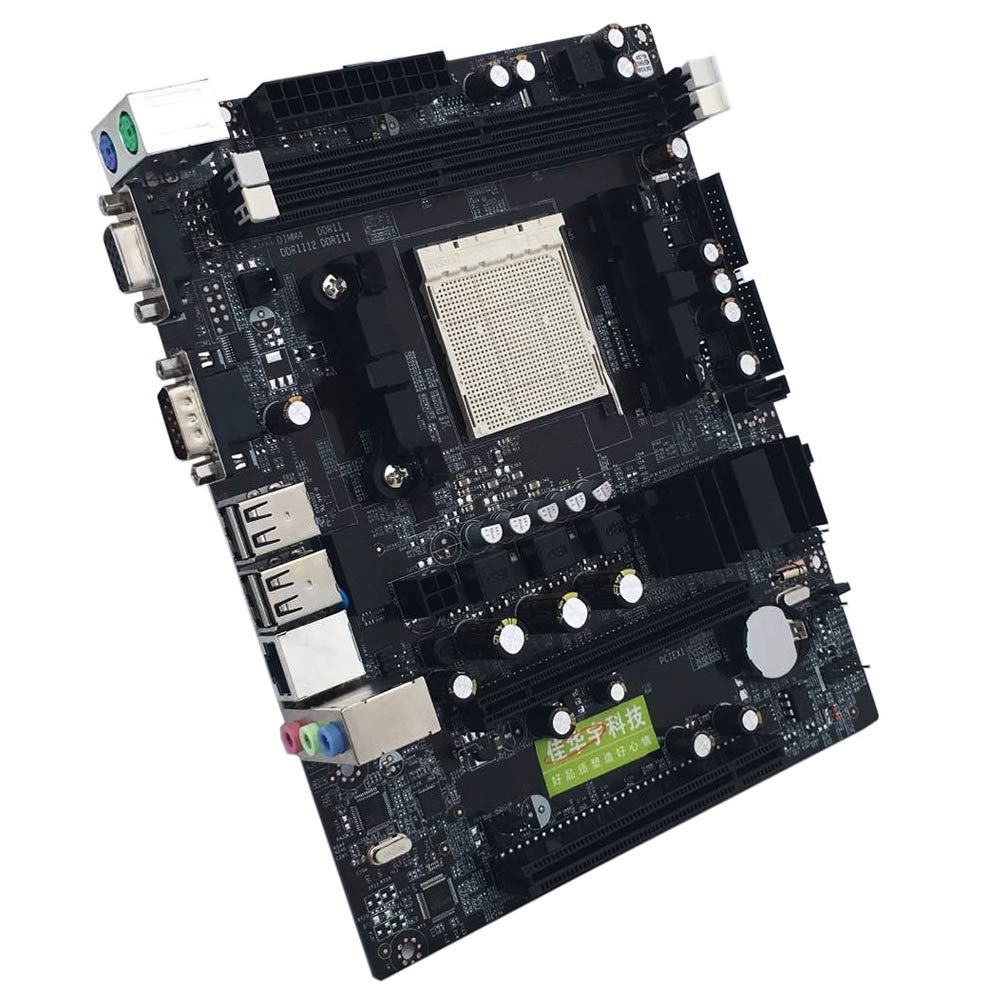

XuBa Desktop Computer Motherboard Support for AM2 for AM3 CPU DDR2+DDR3 Memory with 4 SATA2 Ports

Item type: Motherboard

Important reminder: The color of the slot bottom plate may be different for each batch. The product is continuously optimized and upgraded. If the details are not adjusted, please update the page description. Please understand.

Expansion slot: 1xPCI-E X16 graphics card slot, 1XIDE interface, 2x USB2.0 pin, 2~4xSATA2.0 interface

Memory specification: memory type DDR2 667/800 MHz or DDR3 1333MHz, memory slot 1xDDR2 DIMM 1xDDR3 DIMM

Size: 21.6*16.8 cm

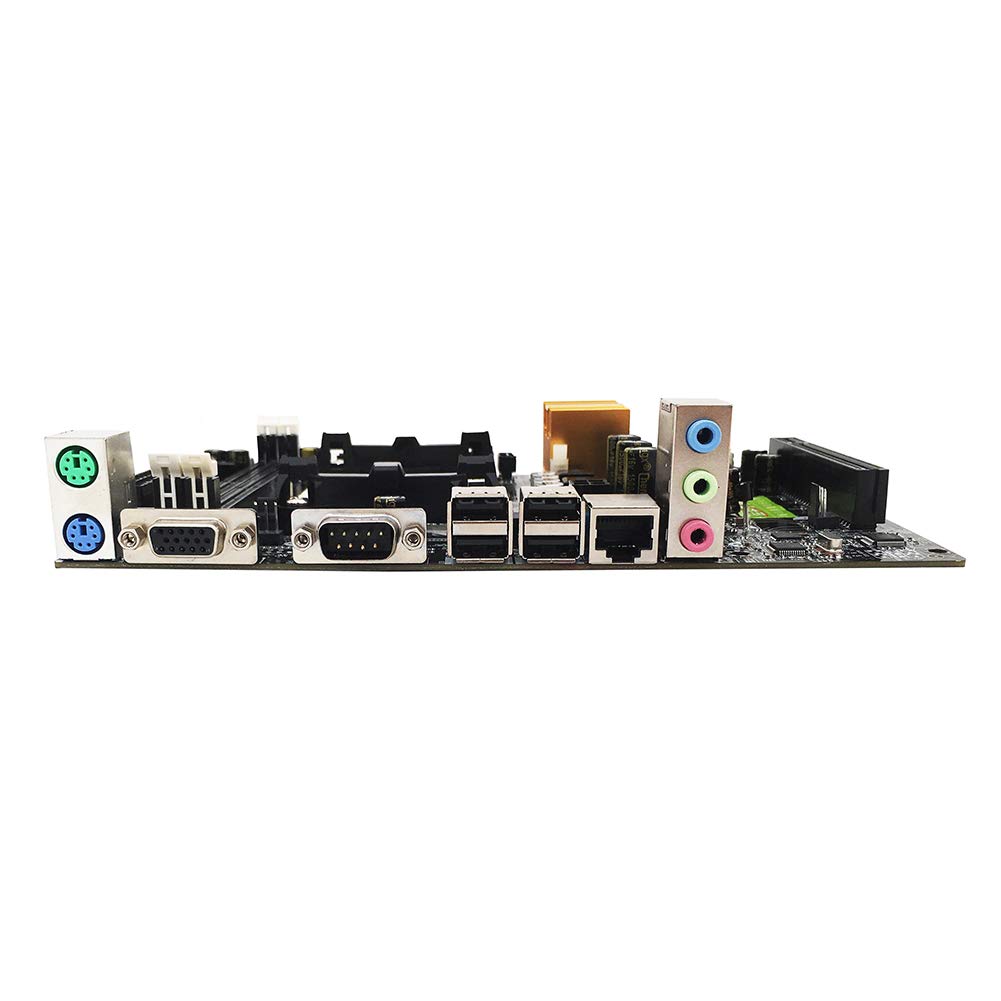

I / O interface: PS / 2 mouse and mouse universal interface each, 1 x RJ45 network interface, 1 x VGA parallel port, 1x com, 4xUSB 2.0 interface, audio interface

Other parameters: a 4-pin power connector, a 24-pin power connector, and 4 phases in power mode

Boxless weight: 0.43 kg

Processor specifications: CPU socket AM2, CPU type AMD AM2 + 3 series, when used with ddr3 memory support AM3cpu, when combined with DDR2 memory support AM2 or AM3 CPU

Motherboard chip: integrated chip graphics / sound card / network card, main chipset NVIDIA C68 / C61, network card chip integrated RTL8105E 100M network card, audio chip integrated 6-channel audio chip

Package Include:

1 x Motherboard

1 x Manual, 1 x Color box packaging
